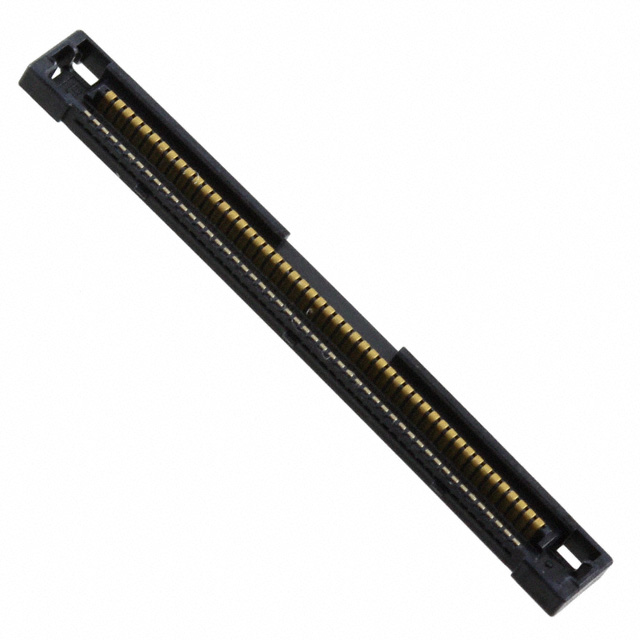

DF36-50P-0.4SD(51)

Active

Hirose Electric USA, Inc.

CONN PLUG 50POS SOLDER 42-46AWG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF36-50P-0.4SD(51) Spec

DF36-50P-0.4SD(51)

Active

Hirose Electric USA, Inc.

CONN PLUG 50POS SOLDER 42-46AWG

Deep-Dive with AI

DocumentsDF36-50P-0.4SD(51) Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF36-50P-0.4SD(51)

Cable Termination	Solder
Color	Natural
Connector Type	Plug
Contact Finish	Gold
Contact Type	Outer Shroud Contact
Fastening Type	Latch Holder
Mounting Type	Free Hanging (In-Line)
Number of Positions	50
Number of Rows	1
Pitch [x]	0.016 in
Pitch [x]	0.4 mm
Wire Gauge [Max]	46 AWG
Wire Gauge [Min]	42 AWG
Wire Type	Discrete

DF36 Series

Part	Number of Positions	For Use With/Related Products	Accessory Type	Wire Type	Cable Termination	Mounting Type	Number of Rows	Color	Pitch [x]	Pitch [x]	Connector Type	Fastening Type	Contact Finish	Contact Type	Wire Gauge [Max]	Wire Gauge [Min]	Number of Positions Loaded	Contact Finish - Post	Style	Current Rating (Amps)	Material Flammability Rating	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Voltage Rating	Features	Insulation Color	Termination	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height
Hirose Electric USA, Inc. DF36-15P-SHL	15	DF36 Series	Shield
Hirose Electric USA, Inc. DF36-50P-0.4SD(51)	50			Discrete	Solder	Free Hanging (In-Line)	1	Natural	0.016 in	0.4 mm	Plug	Latch Holder	Gold	Outer Shroud Contact	46 AWG	42 AWG
Hirose Electric USA, Inc. DF36-40P-0.4SD	40			Discrete	Solder	Free Hanging (In-Line)	1	Natural	0.016 in	0.4 mm	Plug	Latch Holder	Gold	Outer Shroud Contact	46 AWG	42 AWG
Hirose Electric USA, Inc. DF36-45P-0.4SD(51)	45			Discrete	Solder	Free Hanging (In-Line)	1	Natural	0.016 in	0.4 mm	Plug	Latch Holder	Gold	Outer Shroud Contact	46 AWG	42 AWG
Hirose Electric USA, Inc. DF36-15S-0.4V(51)	15					Surface Mount	1				Receptacle	Friction Lock		Center Strip Contact			All	Gold	Board to Cable/Wire	Varies by Wire Gauge	UL94 V-0	Gold	12 µin	0.3 µm	0.099 µm	3.9 µin	Phosphor Bronze	30 VAC	Solder Retention	Black	Solder	Liquid Crystal Polymer (LCP) Halogen Free	-35 °C	85 °C	0.016 in	0.4 mm	1.5 mm	0.059 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.88
		10	$ 2.61
		25	$ 2.48
		50	$ 2.42
		100	$ 2.30
		250	$ 2.01
		500	$ 1.96
		1000	$ 1.67
		2500	$ 1.55
	Digi-Reel®	1	$ 2.88
		10	$ 2.61
		25	$ 2.48
		50	$ 2.42
		100	$ 2.30
		250	$ 2.01
		500	$ 1.96
		1000	$ 1.67
		2500	$ 1.55
	Tape & Reel (TR)	5000	$ 1.43

Description

General part information

DF36 Series

50 Position Rectangular Plug Connector Solder Gold 42-46 AWG

Documents

Technical documentation and resources

DF36-50P-0.4SD(51) Spec

Datasheet
