TMC261-BOB

Active

Analog Devices Inc./Maxim Integrated

BREAKOUTBOARD WITH TMC261

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

BREAKOUTBOARD WITH TMC261

Technical Specifications

Parameters and characteristics for this part

Part	Secondary Attributes	Utilized IC / Part	Type	Primary Attributes	Supplied Contents	Voltage - Load [Min]	Voltage - Load [Max]	Step Resolution [Max]	Step Resolution [Min]	Supplier Device Package	Applications	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Output Configuration	Interface	Motor Type - Stepper	Mounting Type	Technology	Function	Current - Output	Operating Temperature [Min]	Operating Temperature [Max]
Analog Devices Inc./Maxim Integrated TMC261-BOB	SPI Interface(s)	TMC261	Power Management	Motors (Stepper)	Board(s)
Analog Devices Inc./Maxim Integrated TMC261C-PA						9 V	59 V	1	0.00390625	44-PQFP (10x10)	General Purpose	5.25 V	3 V	44-LQFP	Half Bridge (4)	SPI Step/Direction	Bipolar	Surface Mount	Power MOSFET	Driver - Fully Integrated Control and Power Stage	2 A	-40 °C	125 ¯C
Analog Devices Inc./Maxim Integrated TMC261C-PA-T						9 V	59 V	1	0.00390625	44-PQFP (10x10)	General Purpose	5.25 V	3 V	44-LQFP	Half Bridge (4)	SPI Step/Direction	Bipolar	Surface Mount	Power MOSFET	Driver - Fully Integrated Control and Power Stage	2 A	-40 °C	125 ¯C
Analog Devices Inc./Maxim Integrated TMC261-PA						9 V	59 V	1	0.00390625	44-PQFP (10x10)	General Purpose	5.25 V	3 V	44-LQFP	Half Bridge (4)	SPI Step/Direction	Bipolar	Surface Mount	Power MOSFET	Driver - Fully Integrated Control and Power Stage		-40 °C	125 ¯C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

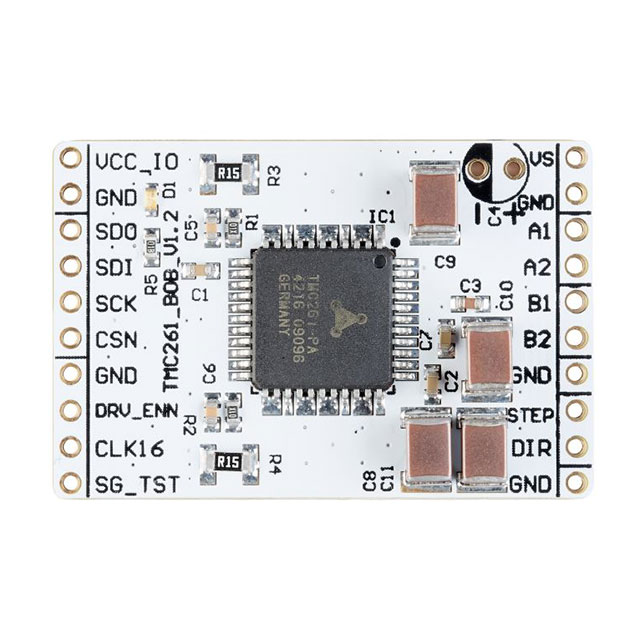

TMC261 Motor Controller/Driver, Stepper Power Management Evaluation Board

Technical documentation and resources

No documents available
