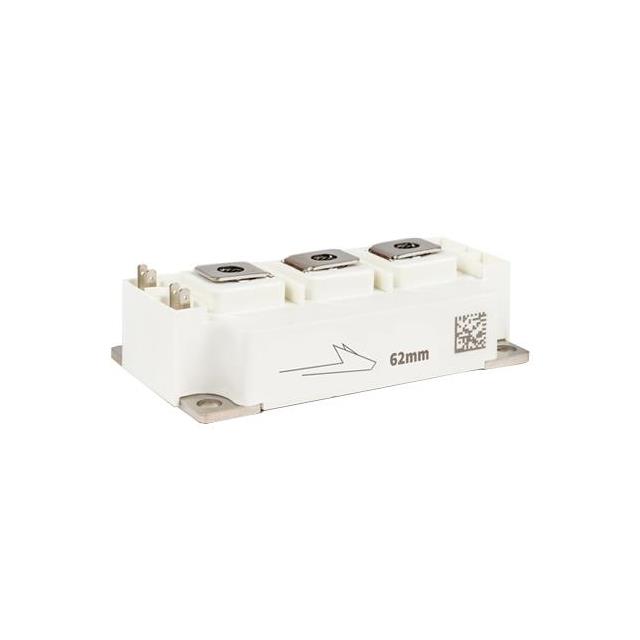

CAS300M12BM2

Wolfspeed

SIC 2N-CH 1200V 423A MODULE

Search across all available documentation for this part.

Wolfspeed

SIC 2N-CH 1200V 423A MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	CAS300M12BM2

Configuration	2 N-Channel (Half Bridge)
Current - Continuous Drain (Id) @ 25°C	423 A
Drain to Source Voltage (Vdss)	1200 V
Drain to Source Voltage (Vdss)	1.2 kV
Gate Charge (Qg) (Max) @ Vgs [Max]	1025 nC
Input Capacitance (Ciss) (Max) @ Vds	19500 pF
Mounting Type	Chassis Mount
Operating Temperature	150 °C
Package / Case	Module, Screw Terminals
Power - Max [Max]	1660 W
Rds On (Max) @ Id, Vgs	5.7 mOhm
Supplier Device Package	Module
Technology	Silicon Carbide (SiC)
Vgs(th) (Max) @ Id	2.3 V

Part	Configuration	Gate Charge (Qg) (Max) @ Vgs [Max]	Operating Temperature	Supplier Device Package	Current - Continuous Drain (Id) @ 25°C	Power - Max [Max]	Vgs(th) (Max) @ Id	Package / Case	Input Capacitance (Ciss) (Max) @ Vds	Drain to Source Voltage (Vdss)	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs	Mounting Type	Technology	Input Capacitance (Ciss) (Max) @ Vds [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Wolfspeed CAS300M12BM2	2 N-Channel (Half Bridge)	1025 nC	150 °C	Module	423 A	1660 W	2.3 V	Module Screw Terminals	19500 pF	1200 V	1.2 kV	5.7 mOhm	Chassis Mount	Silicon Carbide (SiC)
Wolfspeed CAS300M17BM2	2 N-Channel (Half Bridge)			Module	325 A	1760 W	2.3 V	Module		1700 V	1.7 kV	10 mOhm	Chassis Mount	Silicon Carbide (SiC)	20000 pF	150 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 855.31

General part information

Mosfet Array 1200V (1.2kV) 423A (Tc) 1660W Chassis Mount Module
