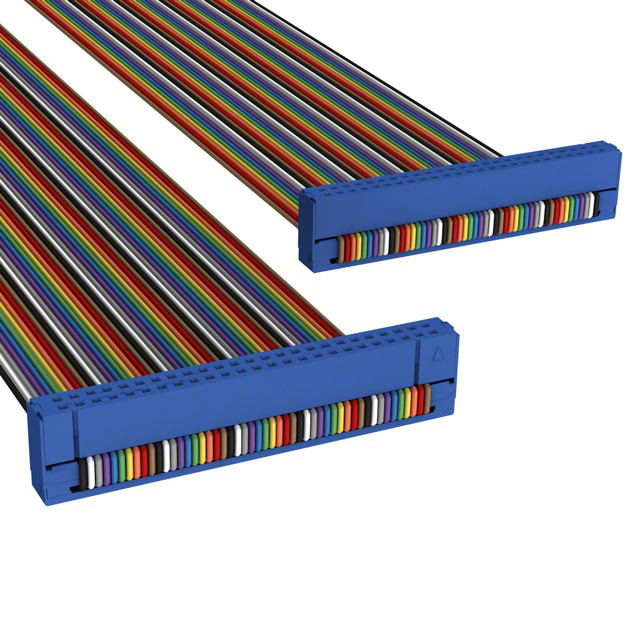

C3BBS-5018M

Active

CW Industries

IDC CABLE - CSR50S/AE50M/CSR50S

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CSR50S/AE50M/CSR50S

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Shielding	Length [x]	Length [x]	Number of Rows	Features	Cable Termination	Contact Finish	Pitch - Cable	Pitch - Cable	Connector Type	Color	Length	Length	Length
CW Industries C3BBS-5036G	50	2.54 µm	100 µin	0.1 in	2.54 mm	Unshielded	3 ft	914.4 mm	2	Strain Relief	IDC	Tin	0.05 "	1.27 mm	Socket to Socket
CW Industries C3BBS-5018G	50	2.54 µm	100 µin	0.1 in	2.54 mm	Unshielded	1.5 ft	457.2 mm	2	Strain Relief	IDC	Tin	0.05 "	1.27 mm	Socket to Socket
CW Industries C3BBS-5018M	50	2.54 µm	100 µin	0.1 in	2.54 mm	Unshielded	1.5 ft	457.2 mm	2	Strain Relief	IDC	Tin	0.05 "	1.27 mm	Socket to Socket	Multiple Ribbon
CW Industries C3BBS-5006M	50	2.54 µm	100 µin	0.1 in	2.54 mm	Unshielded			2	Strain Relief	IDC	Tin	0.05 "	1.27 mm	Socket to Socket	Multiple Ribbon	152.4 mm	6 "	0.5 '
CW Industries C3BBS-5036M	50	2.54 µm	100 µin	0.1 in	2.54 mm	Unshielded	3 ft	914.4 mm	2	Strain Relief	IDC	Tin	0.05 "	1.27 mm	Socket to Socket	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Cable Assembly Rectangular Socket to Socket 1.50' (457.20mm)
