R40-3001602

Active

Harwin Inc.

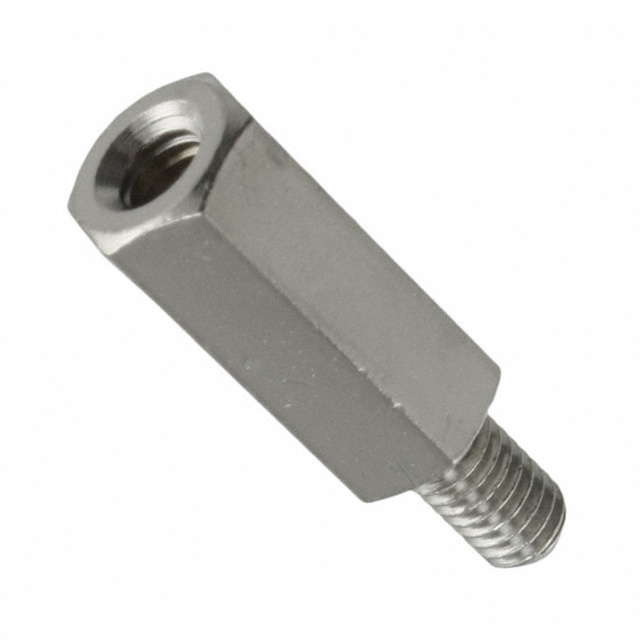

STANDOFF, BRASS, M4, HEX MALE-FEMALE, 16 MM, R40 SERIES

Search across all available documentation for this part.

Active

Harwin Inc.

STANDOFF, BRASS, M4, HEX MALE-FEMALE, 16 MM, R40 SERIES

Technical Specifications

Parameters and characteristics for this part

Part	Length - Overall [x]	Length - Overall [x]	Between Board Height [z]	Between Board Height [z]	Threaded/Unthreaded	Plating	Material	Type	Screw, Thread Size	Gender	Between Board Height	Between Board Height	Length - Overall	Length - Overall
Harwin Inc. R40-3001602	0.945 in	24 mm	16 mm	0.63 in	Threaded	Nickel	Brass	Hex Standoff	M4x0.7	Female Male
Harwin Inc. R40-3001302	0.827 in	21 mm			Threaded	Nickel	Brass	Hex Standoff	M4x0.7	Female Male	13 mm	0.512 in
Harwin Inc. R40-3002002					Threaded	Nickel	Brass	Hex Standoff	M4x0.7	Female Male	20 mm	0.787 in
Harwin Inc. R40-3001402	0.866 "	22 mm			Threaded	Nickel	Brass	Hex Standoff	M4x0.7	Female Male	14 mm	0.551 in
Harwin Inc. R40-3001502	0.906 in	23 mm			Threaded	Nickel	Brass	Hex Standoff	M4x0.7	Female Male	15 mm	0.591 in
Harwin Inc. R40-3001802	1.024 in	26 mm			Threaded	Nickel	Brass	Hex Standoff	M4x0.7	Female Male	18 mm	0.709 in
Harwin Inc. R40-3003502	1.693 in	43 mm			Threaded	Nickel	Brass	Hex Standoff	M4x0.7	Female Male	35 mm	1.378 in
Harwin Inc. R40-3003002					Threaded	Nickel	Brass	Hex Standoff	M4x0.7	Female Male	30 mm	1.181 in	1.496 in	38 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hex Standoff Threaded M4x0.7 Brass 0.630" (16.00mm)
