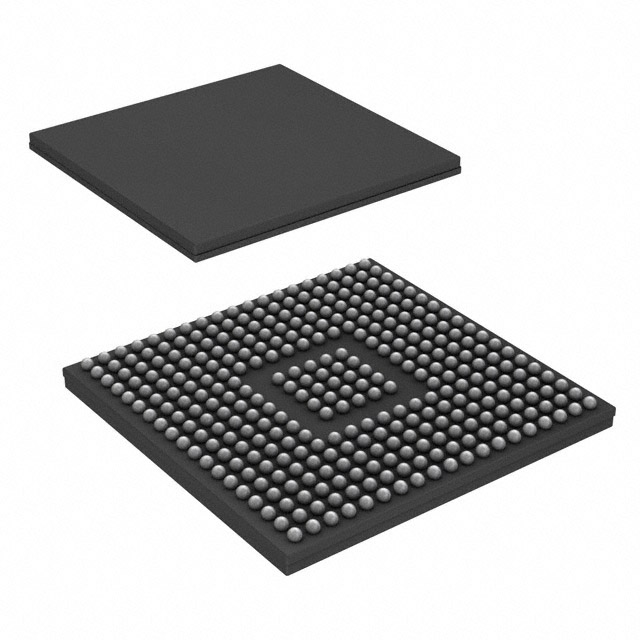

XRM57L843ZWTT

Obsolete

Texas Instruments

IC MCU 32BIT 4MB FLASH 337NFBGA

Search across all available documentation for this part.

Obsolete

Texas Instruments

IC MCU 32BIT 4MB FLASH 337NFBGA

Technical Specifications

Parameters and characteristics for this part

Specification	XRM57L843ZWTT

Connectivity	Ethernet, SCI, CANbus, UART/USART, MibSPI, EBI/EMI, I2C, LINbus
Core Processor	ARM® Cortex®-R5F
Core Size	32-Bit Single-Core
Data Converters	12b, 57x10
EEPROM Size	128 K
Mounting Type	Surface Mount
Number of I/O	145
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	External
Package / Case	337-LFBGA
Peripherals	WDT, DMA, PWM, POR
Program Memory Size	4 MB
Program Memory Type	FLASH
RAM Size	512 K
Speed	330 MHz
Supplier Device Package	337-NFBGA (16x16)
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	1.14 V

Part	Core Processor	Mounting Type	Package / Case	EEPROM Size	Program Memory Size	Program Memory Type	Speed	Oscillator Type	Data Converters	Connectivity	Core Size	Supplier Device Package	Peripherals	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	RAM Size
Texas Instruments XRM57D843ZWTT
Texas Instruments XRM57L843ZWTT	ARM® Cortex®-R5F	Surface Mount	337-LFBGA	128 K	4 MB	FLASH	330 MHz	External	12b 57x10	CANbus EBI/EMI Ethernet I2C LINbus MibSPI SCI UART/USART	32-Bit Single-Core	337-NFBGA (16x16)	DMA POR PWM WDT	145	105 °C	-40 °C	3.6 V	1.14 V	512 K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

ARM® Cortex®-R5F RM Microcontroller IC 32-Bit Single-Core 330MHz 4MB (4M x 8) FLASH 337-NFBGA (16x16)

Technical documentation and resources

No documents available
