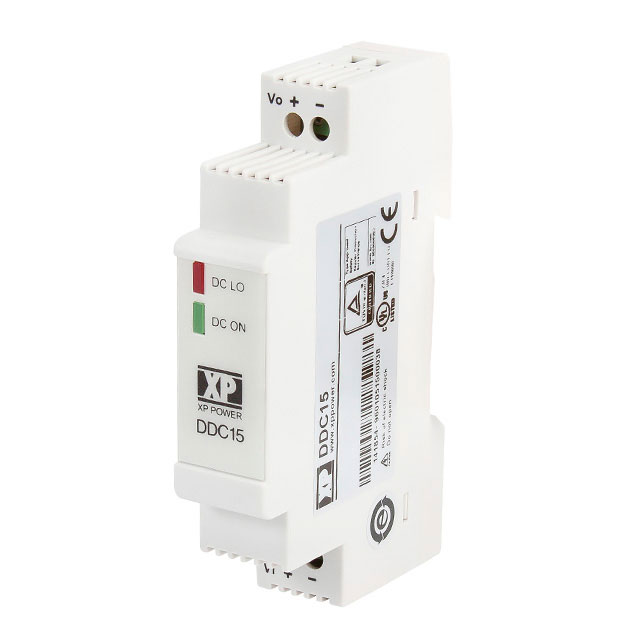

DDC1524S15
ActiveXP POWER
DC/DC DIN RAIL SUPPLY 15V 15W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DDC1524S15
ActiveXP POWER
DC/DC DIN RAIL SUPPLY 15V 15W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DDC1524S15 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB |
| Current - Output (Max) [Max] | 1 A |
| DC Voltage - Input (Max) [Max] | 36 V |
| DC Voltage - Input (Min) [Min] | 9 V |
| Efficiency | 83 % |
| Input Type | DC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 2.22 in |
| Size / Dimension [x] | 56.4 mm |
| Size / Dimension [y] | 18 mm |
| Size / Dimension [y] | 0.71 in |
| Size / Dimension [z] | 3.58 in |
| Size / Dimension [z] | 91 mm |
| Standard Number | 62368-1 |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 47.00 | |
| 5 | $ 45.59 | |||
| 10 | $ 44.18 | |||
| 25 | $ 42.30 | |||
| 100 | $ 39.48 | |||
Description
General part information
DDC1524 Series
DC/DC DIN RAIL SUPPLY 15V 15W
