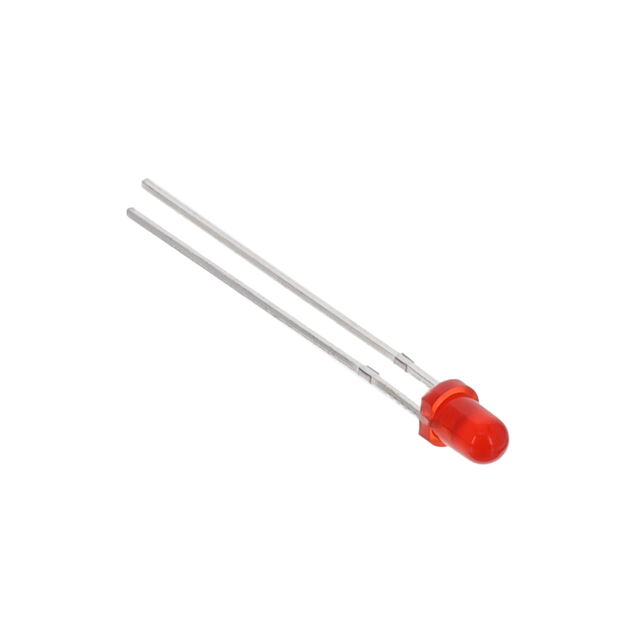

3HD-F
ActiveBivar Inc.
LED, THROUGH HOLE, 3MM, HE RED, 625NM, 30MCD, DIFFUSED LENS, 35 DEG VIEWING ANGLE, FLANGED / BAG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3HD-F
ActiveBivar Inc.
LED, THROUGH HOLE, 3MM, HE RED, 625NM, 30MCD, DIFFUSED LENS, 35 DEG VIEWING ANGLE, FLANGED / BAG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3HD-F |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 5.3 mm |
| Lens Color | Red |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 30 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | T-1 |
| Viewing Angle | 35 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
3HD-F Series
Red LED Indication - Discrete 2V Radial
