UVZ1A102MPD

Active

NICHICON

ELECTROLYTIC CAPACITOR, 1000 ΜF, 10 V, ± 20%, PC PIN, 1000 HOURS @ 105°C, POLAR

Search across all available documentation for this part.

Active

NICHICON

ELECTROLYTIC CAPACITOR, 1000 ΜF, 10 V, ± 20%, PC PIN, 1000 HOURS @ 105°C, POLAR

Technical Specifications

Parameters and characteristics for this part

Specification	UVZ1A102MPD

Applications	General Purpose
Capacitance	1000 µF
Height - Seated (Max) [Max]	0.492 in
Height - Seated (Max) [Max]	12.5 mm
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	529 mA
Ripple Current @ Low Frequency	460 mA
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Tolerance	20 %
Voltage - Rated	10 V

Part	Voltage - Rated	Applications	Lifetime @ Temp.	Ripple Current @ Low Frequency	Capacitance	Tolerance	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ High Frequency	Mounting Type	Polarization	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
NICHICON UVZ1A103MHD	10 V	General Purpose	2000 Hrs	1.89 A	10000 µF	20 %	Radial Can	0.63 in	16 mm	105 ░C	-55 °C	37 mm	1.457 in	2.1735 A	Through Hole	Polar	7.5 mm	0.295 in
NICHICON UVZ1A102MPD	10 V	General Purpose	2000 Hrs	460 mA	1000 µF	20 %	Radial Can	0.394 in	10 mm	105 ░C	-55 °C			529 mA	Through Hole	Polar	5 mm	0.197 in	0.492 in	12.5 mm
NICHICON UVZ1A682MHD	10 V	General Purpose	2000 Hrs	1.57 A	6800 µF	20 %	Radial Can	0.63 in	16 mm	105 ░C	-55 °C	27 mm	1.063 in	1.8055 A	Through Hole	Polar	7.5 mm	0.295 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

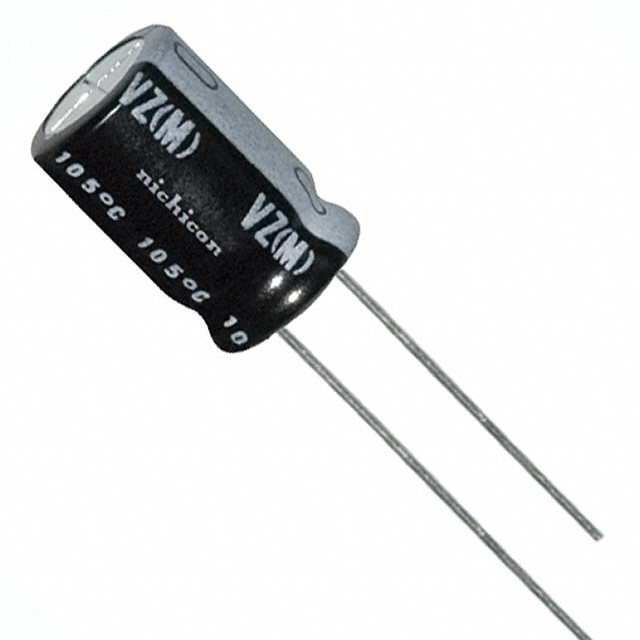

The UVZ1A102MPD is a radial leaded Aluminum Electrolytic Capacitor feature printed with white color letter on black sleeve marking.
