430082-502
ActiveLaird Thermal Systems, Inc.

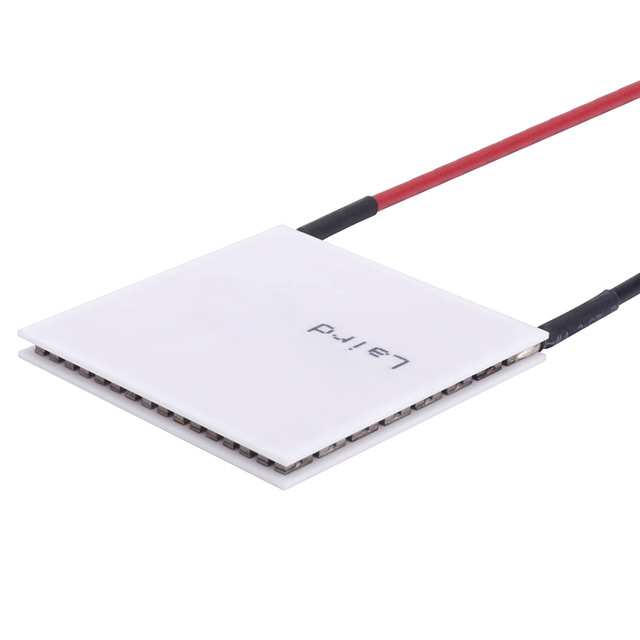

PELTIER CP14,127,045,L1,EP,W4.5
Deep-Dive with AI
Search across all available documentation for this part.
430082-502
ActiveLaird Thermal Systems, Inc.
PELTIER CP14,127,045,L1,EP,W4.5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 430082-502 |
|---|---|
| Current - Max [Max] | 8.5 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Sealed - Epoxy |
| Height [z] | 3.33 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 72 W |
| Resistance | 1.55 Ohms |
| Size / Dimension [x] | 39.88 mm |
| Size / Dimension [y] | 39.88 mm |
| Voltage - Max [Max] | 14.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.71 | |
| 5 | $ 30.66 | |||
| 20 | $ 29.92 | |||
| 40 | $ 28.81 | |||
| 60 | $ 28.06 | |||
| 100 | $ 27.32 | |||
Description
General part information
430082 Series
Peltier Module 72.0W @ 25°C 8.5 A 80°C
Documents
Technical documentation and resources
