S33B0C-P22MFG0-4500

Active

ODU

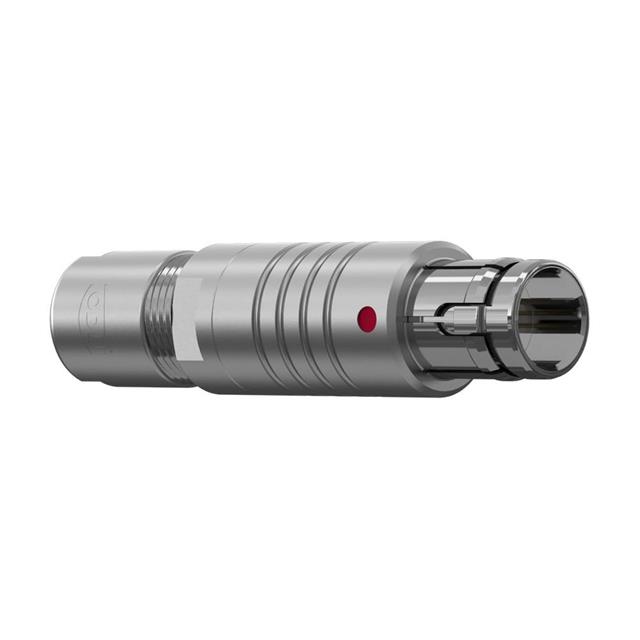

ODU MINI-SNAP PLUG, STY 3, SZ 3,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S33B0C-P22MFG0-4500

Active

ODU

ODU MINI-SNAP PLUG, STY 3, SZ 3,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S33B0C-P22MFG0-4500

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Brass, Chrome over Nickel
Cable Opening [Max] [custom]	4.5 mm
Cable Opening [Max] [custom]	0.177 in
Cable Opening [Min] [custom]	0.157 in
Cable Opening [Min] [custom]	4 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	7.5 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	22 positions
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	0
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	3
Shielding	Unshielded
Voltage Rating	333 V

S33B0C-P Series

Part	Connector Type	Features	Shell Finish	Current Rating (Amps)	Cable Opening [custom]	Cable Opening [custom]	Contact Finish - Mating	Color	Ingress Protection	Mounting Type	Backshell Material, Plating	Contact Material	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Voltage Rating	Shell Size - Insert	Shell Material	Number of Positions	Shielding	Applications	Fastening Type	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Termination	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
ODU S33B0C-P22MFG0-8500	Male Pins Plug	Backshell	Chrome over Nickel	7.5 A	8 mm 8.5 mm	0.315 in 0.335 in	Gold	Silver	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Brass Chrome over Nickel	Brass	Metal	-40 °C	120 °C	Polyetheretherketone (PEEK)	333 V	3	Brass	22 positions	Unshielded	Industrial Medical Military Testing Equipment & Measurement	Push-Pull
ODU S33B0C-P22MFG0-4000	Male Pins Plug	Backshell	Chrome over Nickel	7.5 A			Gold	Silver	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Brass Chrome over Nickel	Brass	Metal	-40 °C	120 °C	Polyetheretherketone (PEEK)	333 V	3	Brass	22 positions	Unshielded	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	0.138 in	0.157 in	4 mm	3.5 mm
ODU S33B0C-P07MSN0-6000	Male Pins Plug	Backshell	Chrome over Nickel	16 A			Gold	Silver	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Brass Chrome over Nickel	Brass	Metal	-40 °C	120 °C	Polyetheretherketone (PEEK)	600 V	3	Brass	7	Unshielded	Industrial Medical Military Testing Equipment & Measurement	Push-Pull					0.217 in	0.236 in	6 mm	5.5 mm
ODU S33B0C-P04MTS0-4500	Male Pins Plug	Backshell	Chrome over Nickel	24 A			Gold	Silver	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Brass Chrome over Nickel	Brass	Metal	-40 °C	120 °C	Polyetheretherketone (PEEK)	600 V	3	Brass	4	Unshielded	Industrial Medical Military Testing Equipment & Measurement	Push-Pull					0.157 in	0.177 in		4 mm	4.5 mm
ODU S33B0C-P22MFG0-4500	Male Pins Plug	Backshell	Chrome over Nickel	7.5 A			Gold	Silver	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Brass Chrome over Nickel	Brass	Metal	-40 °C	120 °C	Polyetheretherketone (PEEK)	333 V	3	Brass	22 positions	Unshielded	Industrial Medical Military Testing Equipment & Measurement	Push-Pull					0.157 in	0.177 in		4 mm	4.5 mm
ODU S33B0C-P07PSN0-6000	Male Pins Plug	Backshell	Chrome over Nickel	21 A			Gold	Silver	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Brass Chrome over Nickel	Brass	Metal	-40 °C	120 °C	Polyetheretherketone (PEEK)	600 V	3	Brass	7	Unshielded	Industrial Medical Military Testing Equipment & Measurement	Push-Pull					0.217 in	0.236 in	6 mm	5.5 mm		Crimp
ODU S33B0C-P10MPN0-9500	Male Pins Plug	Backshell	Chrome over Nickel	15 A			Gold	Silver	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Brass Chrome over Nickel	Brass	Metal	-40 °C	120 °C	Polyetheretherketone (PEEK)	366 V	3	Brass	10	Unshielded	Industrial Medical Military Testing Equipment & Measurement	Push-Pull					0.354 in	0.374 in	9.5 mm	9 mm
ODU S33B0C-P04MTQ0-8000	Male Pins Plug	Backshell	Chrome over Nickel	18 A			Gold	Silver	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Brass Chrome over Nickel	Brass	Metal	-40 °C	120 °C	Polyetheretherketone (PEEK)	600 V	3	Brass	4	Unshielded	Industrial Medical Military Testing Equipment & Measurement	Push-Pull											7 mm	0.276 in 0.315 in	8 mm
ODU S33B0C-P04MTS0-8500	Male Pins Plug	Backshell	Chrome over Nickel	24 A	8 mm 8.5 mm	0.315 in 0.335 in	Gold	Silver	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Brass Chrome over Nickel	Brass	Metal	-40 °C	120 °C	Polyetheretherketone (PEEK)	600 V	3	Brass	4	Unshielded	Industrial Medical Military Testing Equipment & Measurement	Push-Pull
ODU S33B0C-P04LTS0-8500	Male Pins Plug	Backshell	Chrome over Nickel	24 A	8 mm 8.5 mm	0.315 in 0.335 in	Gold	Silver	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Brass Chrome over Nickel	Brass	Metal	-40 °C	120 °C	Polyetheretherketone (PEEK)	600 V	3	Brass	4	Unshielded	Industrial Medical Military Testing Equipment & Measurement	Push-Pull
