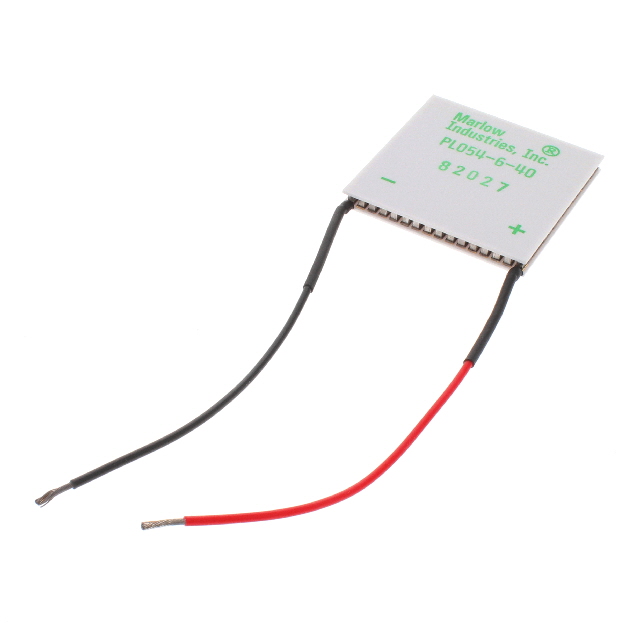

PL054-6-40-01
ActiveMarlow Industries, Inc.
TEM 40X40X3.91
Deep-Dive with AI
Search across all available documentation for this part.
PL054-6-40-01
ActiveMarlow Industries, Inc.
TEM 40X40X3.91
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PL054-6-40-01 |
|---|---|
| Current - Max [Max] | 6 A |
| Delta Tmax @ Th | 66 °C |
| Features | Lead Wires |
| Height [z] | 4.01 mm |
| Number of Stages | 1 |
| Qmax @ Th | 54 W |
| Resistance | 2.24 Ohms |
| Size / Dimension | Square |
| Size / Dimension [x] | 40.01 mm |
| Size / Dimension [y] | 40.01 mm |
| Voltage - Max [Max] | 14.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 37.31 | |
| 5 | $ 35.07 | |||
| 10 | $ 34.14 | |||
| 25 | $ 32.96 | |||
Description
General part information
PL054 Series
Peltier Module 54.0W @ 27°C 6 A 85°C
