A17170-10

Active

Laird Technologies - Thermal Materials

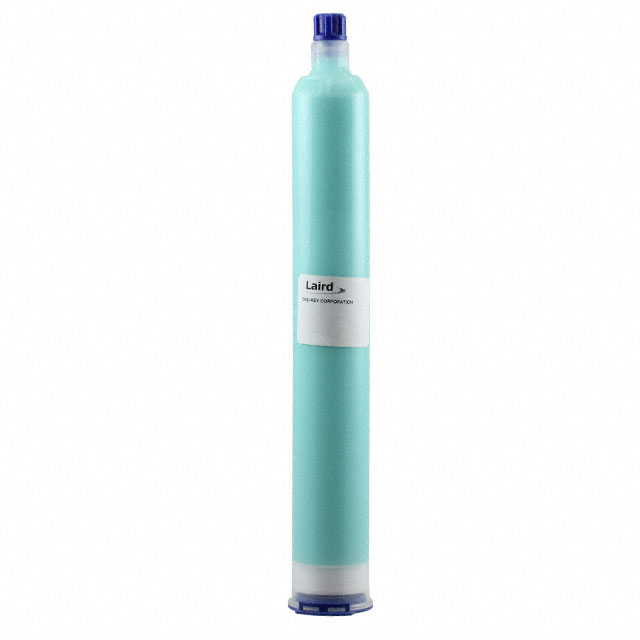

TPUTTY 508 600CC EFD CARTRIDGE

Search across all available documentation for this part.

Active

Laird Technologies - Thermal Materials

TPUTTY 508 600CC EFD CARTRIDGE

Technical Specifications

Parameters and characteristics for this part

Specification	A17170-10

Color	Green
Features	Low Outgassing (ASTM E595)
Shelf Life	6 Months
Shelf Life Start	Date of Manufacture
Size / Dimension	600 cc
Thermal Conductivity	3.7 W/m-K
Type	Liquid Gap Filler
Usable Temperature Range [Max]	150 °C
Usable Temperature Range [Max]	302 °F
Usable Temperature Range [Min]	-40 °F
Usable Temperature Range [Min]	-40 °C

Part	Type	Shelf Life Start	Usable Temperature Range [Max]	Usable Temperature Range [Min]	Usable Temperature Range [Min]	Usable Temperature Range [Max]	Features	Thermal Conductivity	Color	Shelf Life	Size / Dimension	Size / Dimension	Material Flammability Rating
Laird Technologies - Thermal Materials A17170-10	Liquid Gap Filler	Date of Manufacture	150 °C	-40 °F	-40 °C	302 °F	Low Outgassing (ASTM E595)	3.7 W/m-K	Green	6 Months	600 cc
Laird Technologies - Thermal Materials A17170-01	Silicone Compound	Date of Manufacture	150 °C	-40 °F	-40 °C	302 °F	Low Outgassing (ASTM E595)	3.7 W/m-K	Green	6 Months		75cc Cartridge	UL94 V-0
Laird Technologies - Thermal Materials A17170-03	Liquid Gap Filler	Date of Mix	150 °C	-40 °F	-40 °C	302 °F		3.7 W/m-K	Green	6 Months	360 cc		UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Thermal Liquid Gap Filler 600cc Cartridge
