ACB-06BFFC-SL7AP0

Active

Amphenol LTW

CONN PLUG FMALE 6POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN PLUG FMALE 6POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	ACB-06BFFC-SL7AP0

Backshell Material, Plating	Nylon, Polyamide (PA), Glass Filled
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded
Termination	Crimp
Voltage Rating	300 VDC

Part	Color	Orientation	Shell Size - Insert	Shielding	Number of Positions	Termination	Insert Material	Current Rating (Amps)	Shell Material	Mounting Type	Contact Finish - Mating	Contact Material	Features	Primary Material	Material Flammability Rating	Ingress Protection	Backshell Material, Plating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Voltage Rating
Amphenol LTW ACB-06BFFC-SL7AP0	Black	Keyed	C	Unshielded	6	Crimp	Polyamide (PA) Nylon Glass Filled	10 A	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Gold	Copper Alloy	Backshell Coupling Nut	Plastic	UL94 V-0	IP67 - Dust Tight Waterproof	Glass Filled Nylon Polyamide (PA)	Bayonet Lock	-40 °C	105 ░C	Female Sockets Plug	300 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

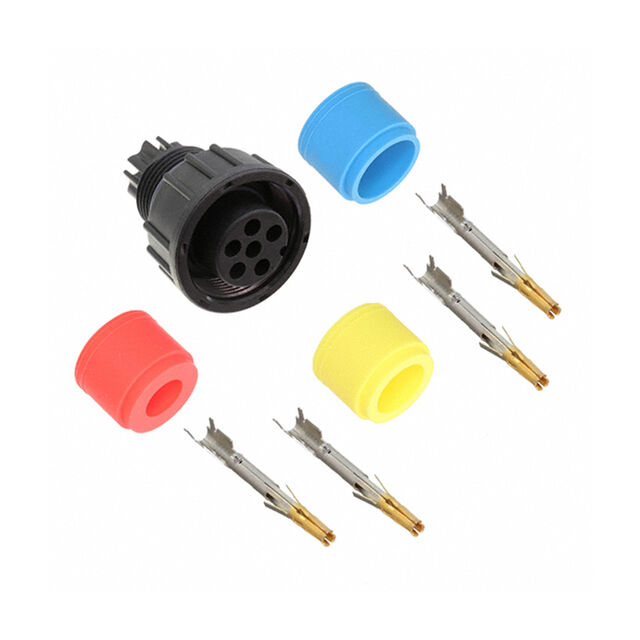

6 (Data) Position Circular Connector Plug, Female Sockets Crimp
