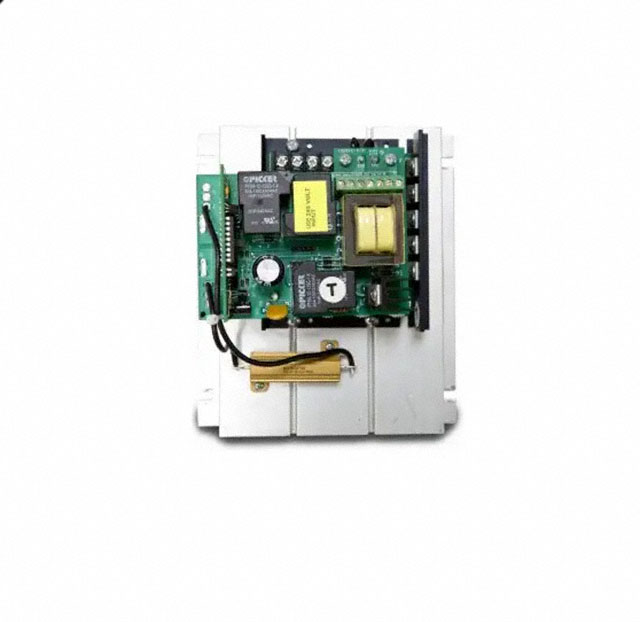

132HC200
ActiveDart Controls
SCR REVERSING CONTROL - 180V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
132HC200
ActiveDart Controls
SCR REVERSING CONTROL - 180V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 132HC200 |
|---|---|
| Control / Drive Type | Brushed |
| Current - Output | 10 A |
| Motor Type | Brushed DC |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 45 °C |
| Operating Temperature [Min] | -10 °C |
| Type | Board |
| Voltage - Load [Max] | 180 V |
| Voltage - Load [Min] | 0 V |
| Voltage - Supply | 240 VAC |
| Wattage - Load | 1.5 kW |
| Weight | 1.5 kg |
| Weight | 3.3 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 399.00 | |
| 2 | $ 359.10 | |||
| 5 | $ 319.20 | |||
Description
General part information
132HC Series
Brushed 240VAC Supply 10A 0 ~ 180VDC Load
