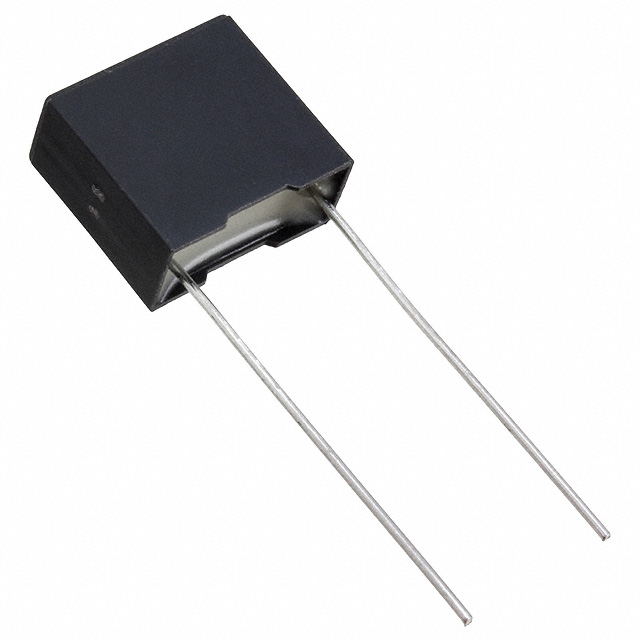

R46KF247040P0M - R46 Series Long Leads

R46KF247040P0M

Active
KEMET

CAP FILM 0.047UF 20% 560VDC RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsR46KF247040P0MDatasheet+3
R46KF247040P0M - R46 Series Long Leads

R46KF247040P0M

Active
KEMET

CAP FILM 0.047UF 20% 560VDC RAD

Deep-Dive with AI

DocumentsR46KF247040P0MDatasheet+3

Technical Specifications

Parameters and characteristics for this part

SpecificationR46KF247040P0M
ApplicationsEMI, RFI Suppression
Dielectric MaterialMetallized, Polypropylene (PP)
Lead Spacing0.394 in
Lead Spacing10 mm
Mounting TypeThrough Hole
Operating Temperature [Max]110 °C
Operating Temperature [Min]-40 °C
Package / CaseRadial
RatingsX2
Size / Dimension [x]13 mm
Size / Dimension [x]0.512 in
Size / Dimension [y]4 mm
Size / Dimension [y]0.157 in
TerminationPC Pins
Tolerance20 %
Voltage Rating - AC275 V
Voltage Rating - DC560 V

R46KF Series

PartOperating Temperature [Min]Operating Temperature [Max]Mounting TypeRatingsApplicationsDielectric MaterialPackage / CaseHeight - Seated (Max) [Max] [z]Height - Seated (Max) [Max] [z]CapacitanceVoltage Rating - ACVoltage Rating - DCToleranceLead SpacingLead SpacingTerminationHeight - Seated (Max) [Max]Height - Seated (Max) [Max]Size / Dimension [x]Size / Dimension [y]Size / Dimension [x]Size / Dimension [y]
KEMET
R46KF268040M1K
-40 °C
110 °C
Through Hole
X2
EMI
RFI Suppression
Metallized
Polypropylene (PP)
Radial
12.1 mm
0.476 "
0.068 µF
275 V
560 V
10 %
0.394 in
10 mm
PC Pins
KEMET
R46KF315000P0M
-40 °C
110 °C
Through Hole
X2
EMI
RFI Suppression
Metallized
Polypropylene (PP)
Radial
12.1 mm
0.476 "
0.15 ÁF
275 V
560 V
20 %
0.394 in
10 mm
PC Pins
KEMET
R46KF310000P1M
-40 °C
110 °C
Through Hole
X2
EMI
RFI Suppression
Metallized
Polypropylene (PP)
Radial
100000 pF
275 V
560 V
20 %
0.394 in
10 mm
PC Pins
0.437 in
11.1 mm
0.512 in
0.197 "
13 mm
5 mm
KEMET
R46KF233000M1M
-40 °C
110 °C
Through Hole
X2
EMI
RFI Suppression
Metallized
Polypropylene (PP)
Radial
0.033 çF
275 V
560 V
20 %
0.394 in
10 mm
PC Pins
0.437 in
11.1 mm
0.512 in
0.197 "
13 mm
5 mm
KEMET
R46KF233040H1M
-40 °C
125 °C
Through Hole
X2
EMI
RFI Suppression
Metallized
Polypropylene (PP)
Radial
0.033 çF
275 V
560 V
20 %
0.394 in
10 mm
PC Pins
0.437 in
11.1 mm
0.512 in
0.197 "
13 mm
5 mm
KEMET
R46KF215000N0M
-40 °C
110 °C
Through Hole
X2
EMI
RFI Suppression
Metallized
Polypropylene (PP)
Radial
15000 pF
275 V
560 V
20 %
0.394 in
10 mm
PC Pins
0.512 in
0.157 in
13 mm
4 mm
KEMET
R46KF247040P0M
-40 °C
110 °C
Through Hole
X2
EMI
RFI Suppression
Metallized
Polypropylene (PP)
Radial
275 V
560 V
20 %
0.394 in
10 mm
PC Pins
0.512 in
0.157 in
13 mm
4 mm
KEMET
R46KF210050N0K
-40 °C
110 °C
Through Hole
X2
EMI
RFI Suppression
Metallized
Polypropylene (PP)
Radial
10000 pF
275 V
560 V
10 %
0.394 in
10 mm
PC Pins
0.512 in
0.157 in
13 mm
4 mm
KEMET
R46KF247040H1M
-40 °C
125 °C
Through Hole
X2
EMI
RFI Suppression
Metallized
Polypropylene (PP)
Radial
12.1 mm
0.476 "
275 V
560 V
20 %
0.394 in
10 mm
PC Pins
KEMET
R46KF247050N0K
-40 °C
110 °C
Through Hole
X2
EMI
RFI Suppression
Metallized
Polypropylene (PP)
Radial
275 V
560 V
10 %
0.394 in
10 mm
PC Pins
0.437 in
11.1 mm
0.512 in
0.197 "
13 mm
5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 0.71
10$ 0.50
50$ 0.42
100$ 0.34
500$ 0.28
1800$ 0.24
3600$ 0.22
5400$ 0.21
NewarkEach 10$ 0.36
25$ 0.35
50$ 0.33
100$ 0.31
500$ 0.26
1000$ 0.26
2500$ 0.21

Description

General part information

R46KF Series

0.047 µF Film Capacitor 275V 560V Polypropylene (PP), Metallized Radial
