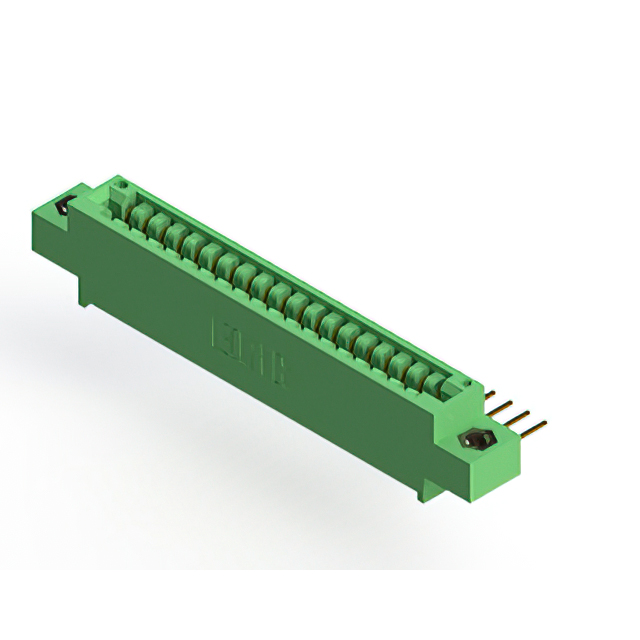

346-019-559-608
ActiveEDAC Inc.
CONN EDGE SGL FMALE 19POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
346-019-559-608
ActiveEDAC Inc.
CONN EDGE SGL FMALE 19POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-019-559-608 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 19 |
| Number of Positions/Bay/Row [custom] | 19 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Wire Wrap, Solder |
| Termination Rows | 1 |
346-019 Series
...
| Part | Termination | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Contact Material | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Color | Number of Rows | Flange Feature | Flange Feature | Contact Type | Number of Positions/Bay/Row [custom] | Mounting Type | Contact Finish | Gender | Read Out | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Copper Alloy | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Green | 1 | 3.25 mm | 0.128 in | Cantilever | 19 | Through Hole | Gold | Female | Single | Non Specified - Single Edge | -40 °C | 105 ░C | 19 | ||||
EDAC Inc. | Solder Wire Wrap | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Copper Alloy | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Green | 1 | Cantilever | 19 | Through Hole Right Angle | Gold | Female | Single | Non Specified - Single Edge | -40 °C | 105 ░C | 19 | 4-40 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Solder | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Copper Alloy | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Green | 1 | 3.25 mm | 0.128 in | Cantilever | 19 | Through Hole | Gold | Female | Single | Non Specified - Single Edge | -40 °C | 105 ░C | 19 | ||||
EDAC Inc. | Wire Wrap | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Copper Alloy | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Green | 1 | Cantilever | 19 | Through Hole | Gold | Female | Single | Non Specified - Single Edge | -40 °C | 105 ░C | 19 | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | Solder Eyelet(s) | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Copper Alloy | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Green | 1 | Cantilever | 19 | Through Hole | Gold | Female | Single | Non Specified - Single Edge | -40 °C | 105 ░C | 19 | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | |||
EDAC Inc. | Solder Eyelet(s) | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Copper Alloy | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Green | 1 | Cantilever | 19 | Through Hole | Gold | Female | Single | Non Specified - Single Edge | -40 °C | 105 ░C | 19 | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||||
EDAC Inc. | Solder | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Copper Alloy | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Green | 1 | Cantilever | 19 | Through Hole | Gold | Female | Single | Non Specified - Single Edge | -40 °C | 105 ░C | 19 | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | |||
EDAC Inc. | Wire Wrap | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Copper Alloy | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Green | 1 | Cantilever | 19 | Through Hole | Gold | Female | Single | Non Specified - Single Edge | -40 °C | 105 ░C | 19 | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | Solder Wire Wrap | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Copper Alloy | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Green | 1 | Cantilever | 19 | Through Hole Right Angle | Gold | Female | Single | Non Specified - Single Edge | -40 °C | 105 ░C | 19 | ||||||
EDAC Inc. | Solder Wire Wrap | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Copper Alloy | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Green | 1 | Cantilever | 19 | Through Hole Right Angle | Gold | Female | Single | Non Specified - Single Edge | -40 °C | 105 ░C | 19 | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 12.03 | |
Description
General part information
346-019 Series
19 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
