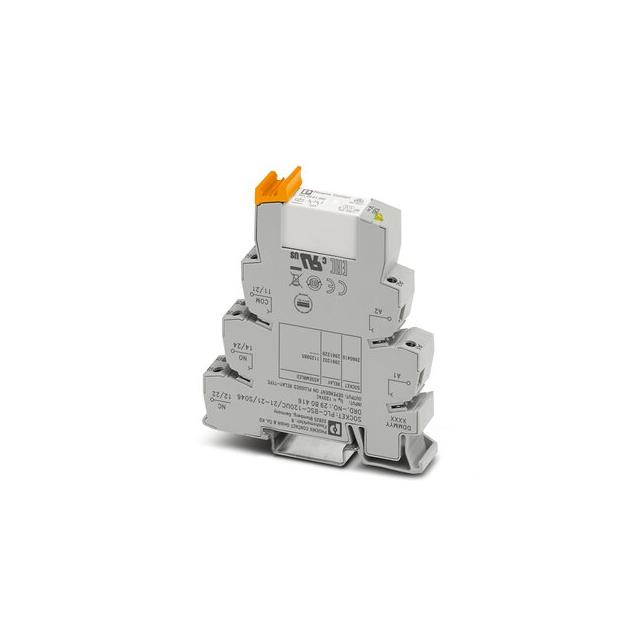

1125985

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 6A 120V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 6A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	1125985

Approval Agency	UKCA, CE
Coil Current	7 mA
Coil Resistance	26.6 kOhms
Coil Type	Non Latching
Coil Voltage	120 VAC, 120 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	6 A
Features	Lighted Indicator, Socket Included
Mounting Type	DIN Rail
Operate Time	7 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Screw Terminal

Part	Contact Rating (Current)	Switching Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage	Approval Agency	Release Time	Coil Resistance	Termination Style	Contact Form	Operate Time	Relay Type	Features	Coil Current	Coil Type	Contact Material	Mounting Type
Phoenix Contact 1125985	6 A	250 VAC 250 VDC	-40 °C	55 °C	120 VAC 120 VDC	CE UKCA	10 ms	26.6 kOhms	Screw Terminal	DPDT (2 Form C)	7 ms	General Purpose	Lighted Indicator Socket Included	7 mA	Non Latching	Silver Nickel (AgNi)	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 23.52

General part information

General Purpose Relay DPDT (2 Form C) 120VAC/DC Coil DIN Rail
