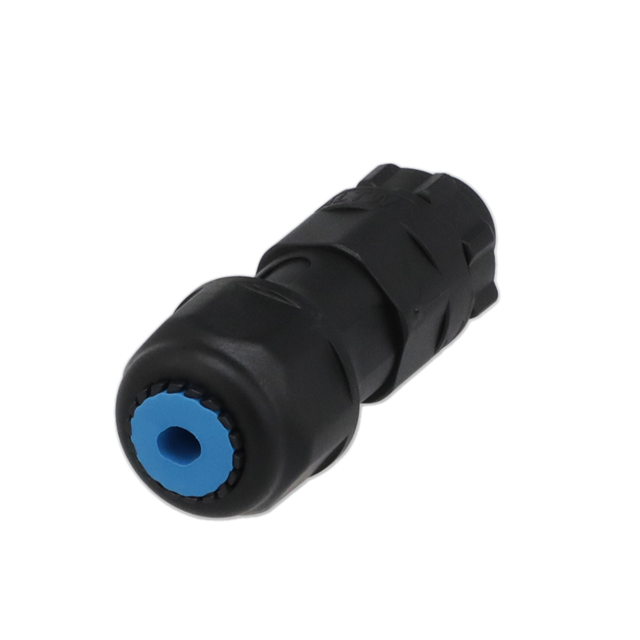

AD-03BMMB-QL8AP0

Active

Amphenol LTW

CONN RCPT MALE 3POS GOLD SCREW

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT MALE 3POS GOLD SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	AD-03BMMB-QL8AP0

Backshell Material, Plating	Thermoplastic
Cable Opening [Max] [custom]	0.315 in
Cable Opening [Max] [custom]	8 mm
Cable Opening [Min] [custom]	4 mm
Cable Opening [Min] [custom]	0.157 in
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Features	Coupling Nut, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Size - Insert	A-3
Shielding	Unshielded
Termination	Screw

Part	Shielding	Backshell Material, Plating	Contact Finish - Mating	Fastening Type	Mounting Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Shell Size - Insert	Color	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Connector Type	Features	Current Rating (Amps)	Ingress Protection	Insert Material	Contact Material
Amphenol LTW AD-03BMMB-QL8AP0	Unshielded	Thermoplastic	Gold	Push-Pull	Free Hanging (In-Line)	Screw	-40 °C	105 ░C	Keyed	A-3	Black	4 mm	0.315 in	0.157 in	8 mm	Male Pins Receptacle	Backshell Coupling Nut	5 A	IP68 - Dust Tight Waterproof	Polyamide (PA) Nylon Glass Filled	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Screw
