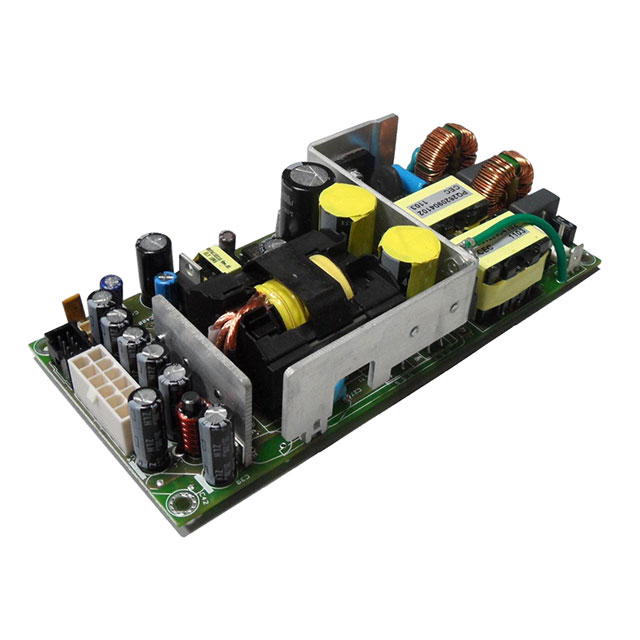

MBC401-1048-S

LTB

EOS Power India Private Ltd

POWER SUPPLY, AC-DC, 48V, 8.3A ROHS COMPLIANT: YES

Search across all available documentation for this part.

LTB

EOS Power India Private Ltd

POWER SUPPLY, AC-DC, 48V, 8.3A ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	MBC401-1048-S

Applications	Medical
Approval Agency	cURus, DEMKO, CE
Current - Output 1	8.3 A
Efficiency	94 %
Features	Universal Input, Remote Sense, Remote On/Off, Adjustable Output, PFC
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	398 W
Size / Dimension [x]	183 mm
Size / Dimension [x]	7.2 in
Size / Dimension [y]	3.32 "
Size / Dimension [y]	84.4 mm
Size / Dimension [z]	41 mm
Size / Dimension [z]	1.61 "
Standard Number	60601-1
Type	Enclosed
Voltage - Input [Max]	270 VDC, 264 VAC
Voltage - Input [Min]	90 VAC, 170 VDC
Voltage - Isolation	4000 V
Voltage - Output 1	48 V

Part	Efficiency	Standard Number	Current - Output 1	Voltage - Isolation	Number of Outputs	Approval Agency	Features	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Type	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Output 1
EOS Power India Private Ltd MBC401-1048-S	94 %	60601-1	8.3 A	4000 V	1	CE cURus DEMKO	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	Medical	183 mm	41 mm	7.2 in	3.32 "	1.61 "	84.4 mm	Enclosed	264 VAC 270 VDC	90 VAC 170 VDC	398 W	-20 °C	70 °C	Chassis Mount	48 V
EOS Power India Private Ltd MBC401-1024-PC	94 %	60601-1	16.7 A	4000 V	1	CE cURus DEMKO	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	Medical	166.5 mm	41 mm	6.56 in	3.32 "	1.61 "	84.4 mm	Enclosed	264 VAC 270 VDC	90 VAC 170 VDC	401 W	-20 °C	70 °C	Chassis Mount	24 V
EOS Power India Private Ltd MBC401-1028-UC	94 %	60601-1	14.3 A	4000 V	1	CE cURus DEMKO	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	Medical	166.5 mm	40 mm	6.56 in	3.32 "	1.57 "	84.4 mm	Open Frame	264 VAC 270 VDC	90 VAC 170 VDC		-20 °C	70 °C	Chassis Mount	28 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 288.96
		2	$ 283.97
		3	$ 278.99
		5	$ 274.01
Digikey	Box	20	$ 284.82
Newark	Each	1	$ 488.63

General part information

Enclosed AC DC Converters 1 Output 48V 90 ~ 264 VAC, 170 ~ 270 VDC Input
