HFW4A1201D00

Active

TE Connectivity Aerospace, Defense and Marine

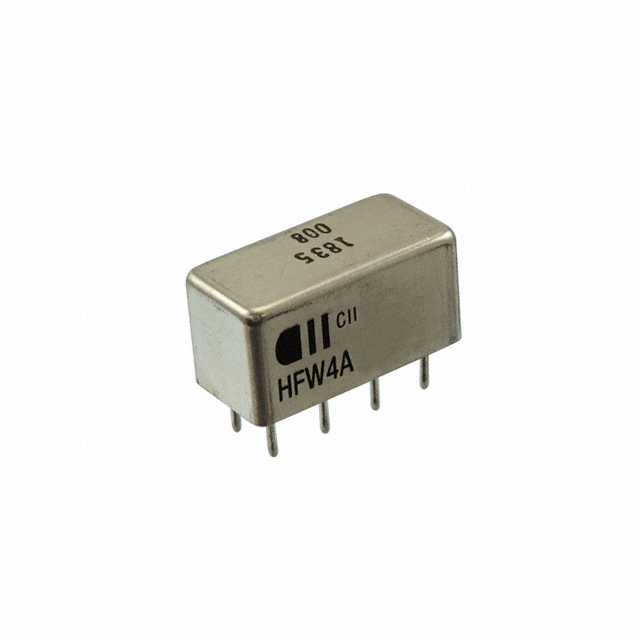

RELAY GEN PURPOSE DPDT 4A 26.5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HFW4A1201D00

Active

TE Connectivity Aerospace, Defense and Marine

RELAY GEN PURPOSE DPDT 4A 26.5V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HFW4A1201D00

Coil Current	21.2 mA
Coil Resistance	1250 Ohms
Coil Type	Non Latching
Coil Voltage	26.5 VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	4 A
Mounting Type	Through Hole
Must Operate Voltage	14 VDC
Must Release Voltage	1.5 VDC
Operate Time	4 ms
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Relay Type	General Purpose
Release Time	4 ms
Seal Rating	Sealed - Hermetically
Termination Style	PC Pin

1617036 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Operate Time	Contact Material	Termination Style	Contact Rating (Current)	Mounting Type	Seal Rating	Relay Type	Release Time	Contact Form	Must Release Voltage	Coil Voltage	Coil Current	Coil Resistance	Must Operate Voltage	Coil Voltage [Max]	Coil Voltage [Min]
TE Connectivity Aerospace, Defense and Marine 2-1617036-0	125 °C	-65 ░C	Non Latching	4 ms	Silver Alloy	PC Pin	4 A	Through Hole	Sealed - Hermetically	General Purpose	4 ms	DPDT (2 Form C)
TE Connectivity Aerospace, Defense and Marine HFW4A1201D00	125 °C	-65 ░C	Non Latching	4 ms		PC Pin	4 A	Through Hole	Sealed - Hermetically	General Purpose	4 ms	DPDT (2 Form C)	1.5 VDC	26.5 VDC	21.2 mA	1250 Ohms	14 VDC
TE Connectivity Aerospace, Defense and Marine 1-1617036-7
TE Connectivity Aerospace, Defense and Marine 1-1617036-6	125 °C	-65 ░C	Non Latching	4 ms	Silver Alloy	PC Pin	4 A	Through Hole	Sealed - Hermetically	General Purpose	3 ms	DPDT (2 Form C)	1.5 VDC	26.5 VDC	46.7 mA	600 Ohms	13.4 VDC
TE Connectivity Aerospace, Defense and Marine 1617036-3	125 °C	-65 ░C	Non Latching	4 ms	Silver Alloy	PC Pin	4 A	Through Hole	Sealed - Hermetically	General Purpose	4 ms	DPDT (2 Form C)	1.5 VDC	26.5 VDC	44.2 mA	600 Ohms	13.4 VDC
TE Connectivity Aerospace, Defense and Marine HFW4A1131D00	125 °C	-65 ░C	Non Latching	4 ms	Silver Alloy	PC Pin	4 A	Through Hole	Sealed - Hermetically	General Purpose	4 ms	DPDT (2 Form C)	1.5 VDC			1250 Ohms	14 VDC	32 VDC	26.5 VDC
TE Connectivity Aerospace, Defense and Marine HFW4A1231D00	125 °C	-65 ░C	Non Latching	4 ms	Silver Alloy	PC Pin	4 A	Through Hole	Sealed - Hermetically	General Purpose	4 ms	DPDT (2 Form C)	1.5 VDC			1250 Ohms	14 VDC	32 VDC	26.5 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 210.89
		10	$ 197.71
		25	$ 184.53
		50	$ 177.94

Description

General part information

1617036 Series

General Purpose Relay DPDT (2 Form C) 26.5VDC Coil Through Hole
