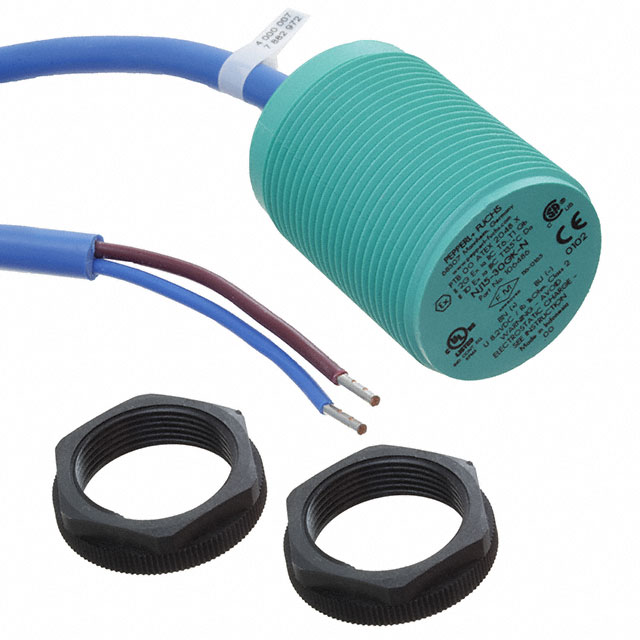

NJ15-30GK-N

Active

PEPPERL+FUCHS

INDUCTIVE SEN 15MM NAMUR

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE SEN 15MM NAMUR

Technical Specifications

Parameters and characteristics for this part

Specification	NJ15-30GK-N

Indicator [custom]	No Indicator
Ingress Protection	IP68, IP66
Material - Body	Polybutylene Terephthalate (PBT)
Operating Temperature [custom]	100 °C, -25 °C
Output Type	SCR-NC, 2-Wire
Package / Case	Cylinder, Threaded - M30
Sensing Distance	15 mm
Sensing Distance	0.591 "
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Cable
Voltage - Supply	8.2 V

Part	Operating Temperature [custom]	Package / Case	Termination Style	Output Type	Sensing Distance	Sensing Distance	Sensor Type	Indicator [custom]	Material - Body	Shielding	Voltage - Supply	Ingress Protection
PEPPERL+FUCHS NJ15-30GK-N	-25 °C 100 °C	Cylinder Threaded - M30	Cable	SCR-NC 2-Wire	15 mm	0.591 "	Inductive	No Indicator	Polybutylene Terephthalate (PBT)	Unshielded	8.2 V	IP66 IP68

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE SEN 15MM NAMUR

Technical documentation and resources
