AA-040-12-22-00-00
ActiveLaird Thermal Systems, Inc.

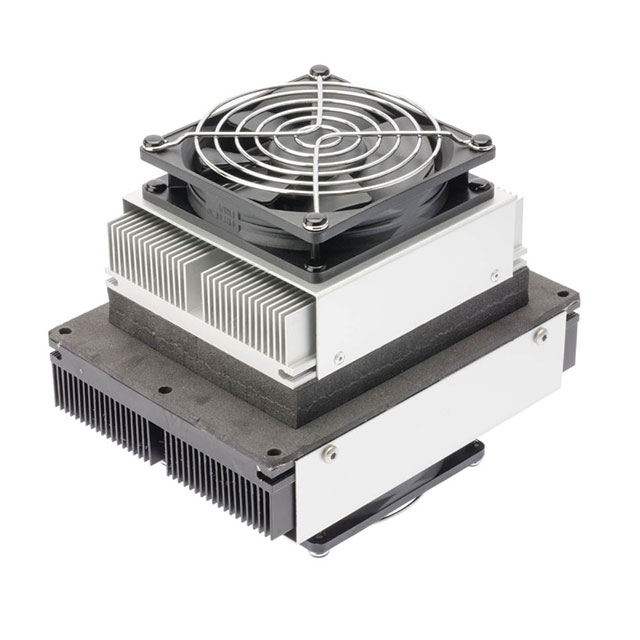

THERMOELECT ASSY AIR-AIR 41W
Deep-Dive with AI
Search across all available documentation for this part.
AA-040-12-22-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY AIR-AIR 41W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AA-040-12-22-00-00 |
|---|---|
| Current | 6.3 A |
| Dimensions - Overall [x] | 160 mm |
| Dimensions - Overall [y] | 122 mm |
| Dimensions - Overall [z] | 146.9 mm |
| Fan Location | Cold Side / Warm Side |
| Heat Transfer Type | Air to Air |
| Operating Temperature [Max] | 48 °C |
| Operating Temperature [Min] | -10 °C |
| Power - Cooling | 41 W |
| Power - Input | 76 W |
| Voltage | 12 V |
| Weight | 1.8 kg |
| Weight | 4 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 256.25 | |
Description
General part information
AA-040-12 Series
Air to Air Thermoelectric Assembly 41 W
Documents
Technical documentation and resources
