031-3202

Active

Amphenol RF

CONN BNC PLUG STR 50 OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

031-3202

Active

Amphenol RF

CONN BNC PLUG STR 50 OHM SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	031-3202

Body Finish	Nickel
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms

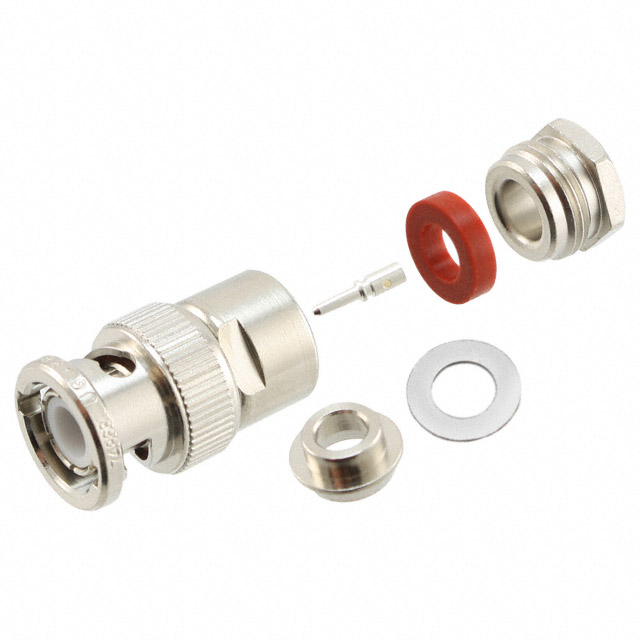

Includes	1 Braid Clamp, 1 Washer, 1 Gasket, 1 Contact, 1 Connector, 1 Clamp
Ingress Protection	Weatherproof
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	500 V

031-32 Series

Part	Body Finish	Body Material	Housing Color	Shield Termination	Cable Group	Includes	Center Contact Material	Mating Cycles	Center Contact Plating	Contact Termination	Frequency - Max [Max]	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Number of Ports	Fastening Type	Voltage Rating	Mounting Type	Connector Type	Insertion Loss	Connector Style	Cable Group	Ingress Protection	Convert To (Adapter End)	Adapter Series	Conversion Type	Center Gender	Convert From (Adapter End)	Adapter Type
Amphenol RF 031-321-10RFX	Nickel	Brass	Silver	Crimp	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	1 Connector 1 Contact 1 Ferrule	Brass	500	Gold	Crimp	4 GHz	50 Ohms	-65 ░C	165 °C	Polyoxymethylene (POM) Acetal	1	Bayonet Lock	500 V	Free Hanging (In-Line)	Male Pin Plug	0.2 dB	BNC
Amphenol RF 031-325	Nickel	Brass	Silver	Crimp	735A AT&T 735 Belden 735A1	1 Connector 1 Contact 1 Ferrule	Brass	500	Gold	Crimp	4 GHz	50 Ohms	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	Bayonet Lock	500 V	Free Hanging (In-Line)	Male Pin Plug	0.2 dB	BNC
Amphenol RF 031-326	Nickel	Brass	Silver	Crimp	RG-55	1 Connector 1 Contact 1 Ferrule	Brass	500	Gold	Crimp Solder	4 GHz	50 Ohms	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	Bayonet Lock	500 V	Free Hanging (In-Line)	Male Pin Plug	0.2 dB	BNC	142 223 400
Amphenol RF 031-3202	Nickel	Brass	Silver	Clamp	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer	Brass	500	Silver	Solder	4 GHz	50 Ohms	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	Bayonet Lock	500 V	Free Hanging (In-Line)	Male Pin Plug	0.2 dB	BNC		Weatherproof
Amphenol RF 031-321-1012	Nickel	Brass	Silver	Crimp	RG-59 Double Braid Belden 9231	1 Connector 1 Contact 1 Ferrule	Brass	500	Gold	Crimp	4 GHz	50 Ohms	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	Bayonet Lock	500 V	Free Hanging (In-Line)	Male Pin Plug	0.2 dB	BNC
Amphenol RF 031-3220-1021																	Bayonet Lock								BNC Jack Female Socket	BNC to BNC	Same Series	Female to Female	BNC Jack Female Socket	Jack to Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.77
		10	$ 20.82
		25	$ 19.92
		50	$ 19.28
		100	$ 18.63
		300	$ 17.61
		500	$ 17.09

Description

General part information

031-32 Series

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Documents

Technical documentation and resources

No documents available
