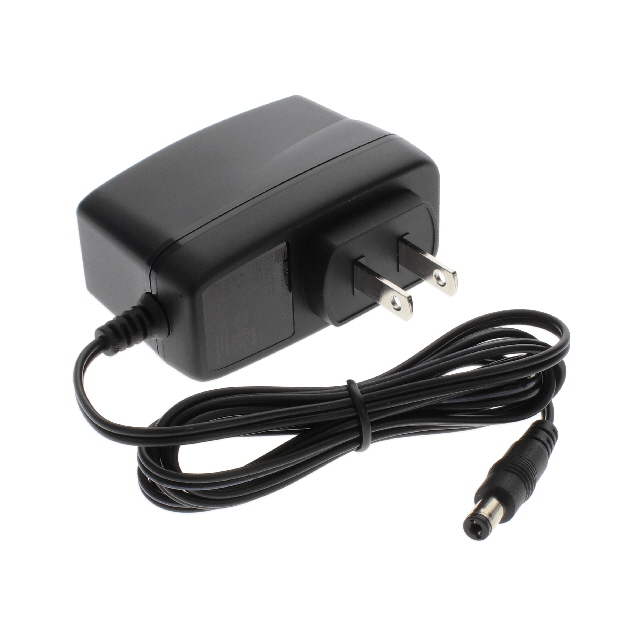

AA10A-050A-R
ActivePhihong USA
AC/DC WALL MOUNT ADAPTER 5V 10W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AA10A-050A-R
ActivePhihong USA
AC/DC WALL MOUNT ADAPTER 5V 10W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AA10A-050A-R |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 2 A |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| No Load Power Consumption [Max] | 75 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 2.1 mm, 5.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 10 W |
| Region Utilized | North America |
| Size / Dimension [x] | 71.2 mm |
| Size / Dimension [x] | 2.8 in |
| Size / Dimension [y] | 34 mm |
| Size / Dimension [y] | 1.34 in |
| Size / Dimension [z] | 52.5 mm |
| Size / Dimension [z] | 2.07 in |
| Standard Number | 60950-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 8.14 | |
| 10 | $ 7.48 | |||
| 25 | $ 7.18 | |||
| 50 | $ 7.01 | |||
| 100 | $ 6.88 | |||
| 250 | $ 6.67 | |||
| 500 | $ 6.27 | |||
| 1000 | $ 6.01 | |||
Description
General part information
AA10A Series
5V 10 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
