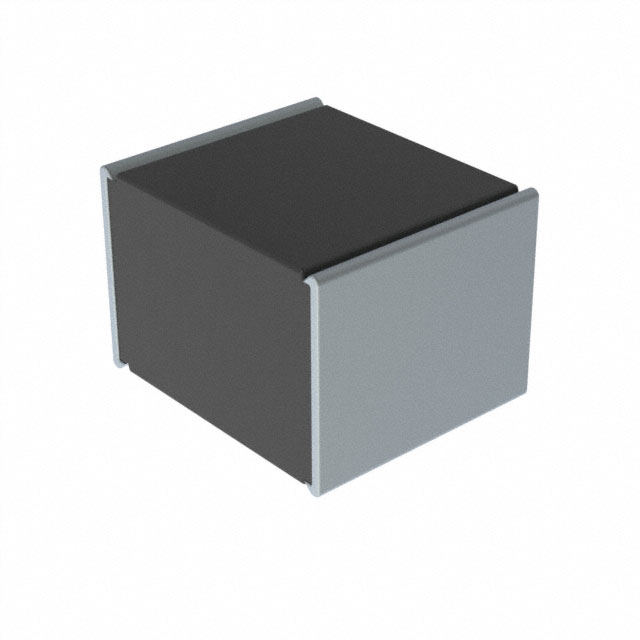

SMDTF03220TB00MQ00

Active

WIMA

CAP FILM 0.22UF 20% 160VAC 2824

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SMDTF03220TB00MQ00

Active

WIMA

CAP FILM 0.22UF 20% 160VAC 2824

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMDTF03220TB00MQ00

Applications	DC Link, DC Filtering
Capacitance	0.22 µF
Dielectric Material	Polyethylene Terephthalate (PET), Metallized, Polyester
Height - Seated (Max) [Max] [z]	5.3 mm
Height - Seated (Max) [Max] [z]	0.209 in
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	2824
Size / Dimension [x]	0.283 in
Size / Dimension [x]	7.2 mm
Size / Dimension [y]	6.1 mm
Size / Dimension [y]	0.24 "
Termination	Solder Pads
Tolerance	20 %
Voltage Rating - AC	160 V
Voltage Rating - DC	250 V

SMDTF0 Series

Part	Voltage Rating - AC	Capacitance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Termination	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Applications	Mounting Type	Package / Case	Voltage Rating - DC	Tolerance	Package / Case	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
WIMA SMDTF03220TB00MQ00	160 V	0.22 µF	6.1 mm	0.24 "	0.283 in	7.2 mm	Solder Pads	5.3 mm	0.209 in	-55 °C	125 °C	Metallized Polyester Polyethylene Terephthalate (PET)	DC Filtering DC Link	Surface Mount	2824	250 V	20 %
WIMA SMDTF03470VA00KR00	160 V	0.47 µF	7.6 mm	0.299 in	0.402 in	10.2 mm	Solder Pads	5.3 mm	0.209 in	-55 °C	125 °C	Metallized Polyester Polyethylene Terephthalate (PET)	DC Filtering DC Link	Surface Mount	4030	250 V	10 %	10276 Metric
WIMA SMDTF02100TA00MQ00	160 V	10000 pF	6.1 mm	0.24 "	0.283 in	7.2 mm	Solder Pads	3.3 mm	0.13 "	-55 °C	125 °C	Metallized Polyester Polyethylene Terephthalate (PET)	DC Filtering DC Link	Surface Mount	2824	250 V	20 %
WIMA SMDTF02150TA00KS00	160 V	15000 pF	6.1 mm	0.24 "	0.283 in	7.2 mm	Solder Pads	3.3 mm	0.13 "	-55 °C	125 °C	Metallized Polyester Polyethylene Terephthalate (PET)	DC Filtering DC Link	Surface Mount	2824	250 V	10 %
WIMA SMDTF02150QA00MS00	160 V	15000 pF		0.201 "	0.224 in	5.7 mm	Solder Pads			-55 °C	125 °C	Metallized Polyester Polyethylene Terephthalate (PET)	DC Filtering DC Link	Surface Mount	2220	250 V	20 %	5750 Metric	5.1 mm
WIMA SMDTF04100YA00JS00	160 V	1 µF	13.7 mm	0.539 in	0.602 in	15.3 mm	Solder Pads			-55 °C	125 °C	Metallized Polyester Polyethylene Terephthalate (PET)	DC Filtering DC Link	Surface Mount	6054	250 V	5 %	153137 Metric		0.287 in	7.3 mm
WIMA SMDTF02680TA00MQ00	160 V	0.068 µF	6.1 mm	0.24 "	0.283 in	7.2 mm	Solder Pads	3.3 mm	0.13 "	-55 °C	125 °C	Metallized Polyester Polyethylene Terephthalate (PET)	DC Filtering DC Link	Surface Mount	2824	250 V	20 %
WIMA SMDTF03220TB00KS00	160 V	0.22 µF	6.1 mm	0.24 "	0.283 in	7.2 mm	Solder Pads	5.3 mm	0.209 in	-55 °C	125 °C	Metallized Polyester Polyethylene Terephthalate (PET)	DC Filtering DC Link	Surface Mount	2824	250 V	10 %
WIMA SMDTF02680QA00KQ00	160 V	0.068 µF		0.201 "	0.224 in	5.7 mm	Solder Pads			-55 °C	125 °C	Metallized Polyester Polyethylene Terephthalate (PET)	DC Filtering DC Link	Surface Mount	2220	250 V	10 %	5750 Metric	5.1 mm
WIMA SMDTF02330QA00KQ00	160 V	0.033 çF		0.201 "	0.224 in	5.7 mm	Solder Pads			-55 °C	125 °C	Metallized Polyester Polyethylene Terephthalate (PET)	DC Filtering DC Link	Surface Mount	2220	250 V	10 %	5750 Metric	5.1 mm
