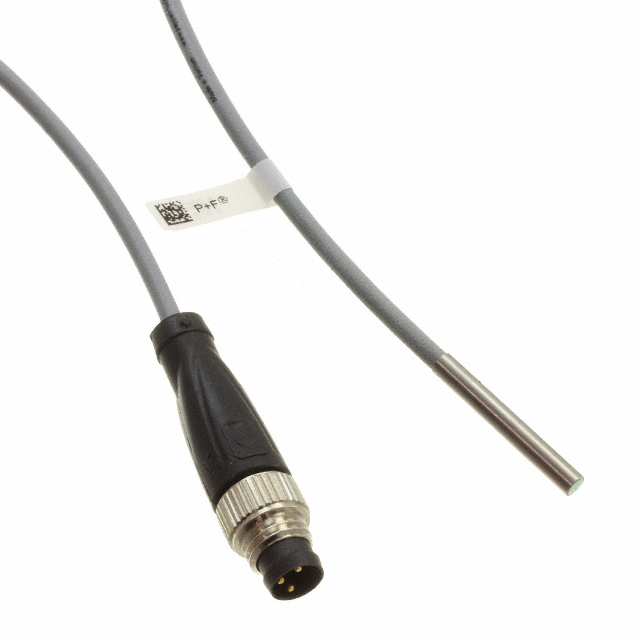

NBB1-3M22-E2-0.3M-V3
ActivePEPPERL+FUCHS
INDUCTIVE SEN 1MM PNP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NBB1-3M22-E2-0.3M-V3 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP67 |
| Material - Body | Stainless Steel |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Cylinder |
| Sensing Distance | 1 mm |
| Sensing Distance | 0.039 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable with Connector |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 160.98 | |
| 10 | $ 147.57 | |||
Description
General part information
NBB1-3 Series
INDUCTIVE SEN 1MM PNP
