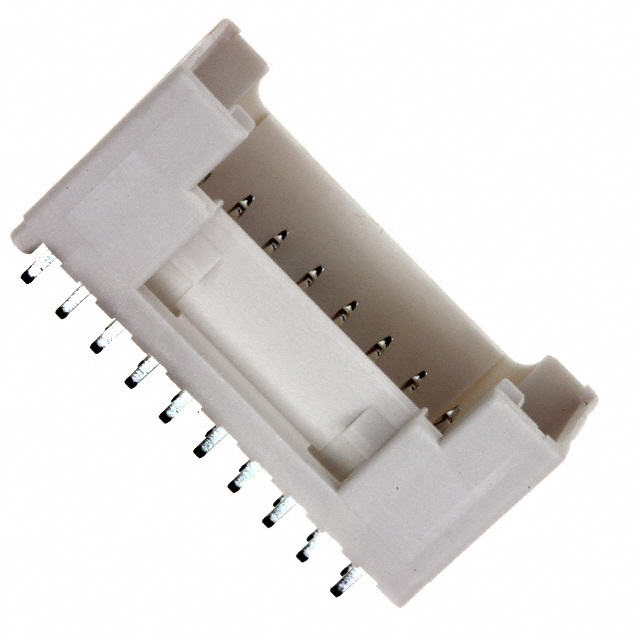

B20B-PUDSS-1

Active

JST Sales America Inc.

CONN HEADER VERT 20POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 20POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	B20B-PUDSS-1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Natural
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	11 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Features	Connector Type	Insulation Material	Mounting Type	Termination	Insulation Color	Mated Stacking Heights	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Material Flammability Rating	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Style	Number of Rows	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Number of Positions	Contact Finish - Post	Voltage Rating	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Fastening Type	Current Rating (Amps)
JST Sales America Inc. B20B-PUDSS-1	Board Guide	Header	Polyamide (PA66) Nylon 6/6 Glass Filled	Through Hole	Solder	Natural	11 mm	-25 °C	85 °C	Copper Alloy	UL94 V-0	0.079 in	2 mm	Square	Board to Cable/Wire	2	0.122 "	3.1 mm	All	20	Tin	250 VDC	Shrouded - 4 Wall	0.079 in	2 mm	Male Pin	Latch Holder	3 A
JST Sales America Inc. B20B-PUDSS(LF)(SN)		Header	Polyamide (PA66) Nylon 6/6 Glass Filled	Through Hole	Solder	Natural	11 mm	-25 °C	85 °C	Copper Alloy	UL94 V-0	0.079 in	2 mm	Square	Board to Cable/Wire	2	0.122 "	3.1 mm	All	20	Tin	250 VDC	Shrouded - 4 Wall	0.079 in	2 mm	Male Pin	Latch Holder	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 20 position 0.079" (2.00mm)
