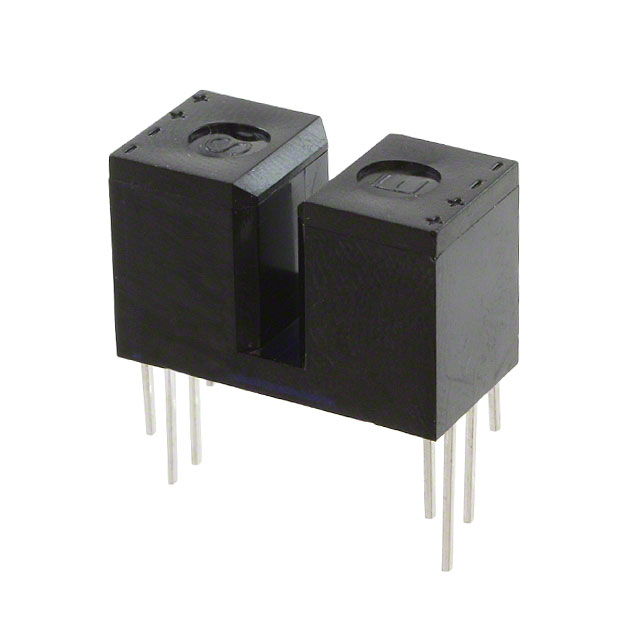

OPB826S

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT 2 NPN PCB MOUNT

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT 2 NPN PCB MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	OPB826S

Current - Collector (Ic) (Max) [Max]	30 mA
Current - DC Forward (If) (Max) [Max]	40 mA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	2 NPN
Package / Case	PCB Mount
Sensing Distance	0.09 in, 2.29 mm
Sensing Method	Through-Beam
Type	Unamplified
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Part	Current - Collector (Ic) (Max) [Max]	Mounting Type	Sensing Distance	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - DC Forward (If) (Max) [Max]	Sensing Method	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Type	Output Configuration
TT Electronics/Optek Technology OPB826S	30 mA	Through Hole	0.09 in 2.29 mm	30 V	40 mA	Through-Beam	85 °C	-40 °C	PCB Mount	Unamplified	2 NPN

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optical Sensor Through-Beam 0.090" (2.29mm) 2 NPN PCB Mount
