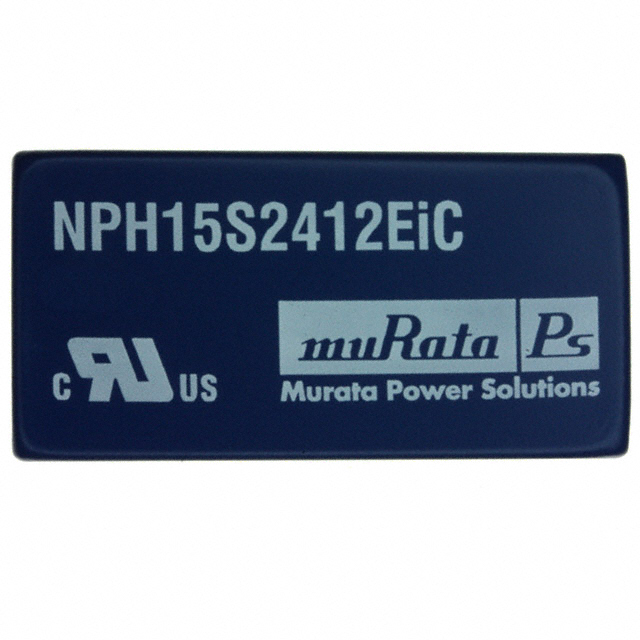

NPH15S2412EIC

Active

Murata Power Solutions Inc.

DC DC CONVERTER 12.1V 15W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 12.1V 15W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Isolation	Efficiency	Voltage - Input (Max) [Max]	Number of Outputs	Power (Watts)	Mounting Type	Current - Output (Max) [Max]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Applications	Type	Voltage - Output 1
Murata Power Solutions Inc. NPH15S2412IC	1.5 kV	86 %	36 V	1	15 W	Through Hole	1.3 A	6-DIP Module	-40 °C	110 °C	18 V	24.9 mm	9.9 mm	1.97 "	0.39 in	0.98 in	50 mm	ITE (Commercial)	Isolated Module	12.1 V
Murata Power Solutions Inc. NPH15S2415IC	1.5 kV	87 %	36 V	1	15 W	Through Hole	1 A	6-DIP Module	-40 °C	110 °C	18 V	24.9 mm	9.9 mm	1.97 "	0.39 in	0.98 in	50 mm	ITE (Commercial)	Isolated Module	15.1 V
Murata Power Solutions Inc. NPH15S2412EIC	1.5 kV	86 %	36 V	1	15 W	Through Hole	1.3 A	6-DIP Module	-40 °C	110 °C	18 V	24.9 mm	9.9 mm	1.97 "	0.39 in	0.98 in	50 mm	ITE (Commercial)	Isolated Module	12.1 V
Murata Power Solutions Inc. NPH15S2405EIC	1.5 kV	84 %	36 V	1	15 W	Through Hole	3 A	6-DIP Module	-40 °C	110 °C	18 V	24.9 mm	9.9 mm	1.97 "	0.39 in	0.98 in	50 mm	ITE (Commercial)	Isolated Module	5.1 V
Murata Power Solutions Inc. NPH15S2405IC	1.5 kV	84 %	36 V	1	15 W	Through Hole	3 A	6-DIP Module	-40 °C	110 °C	18 V	24.9 mm	9.9 mm	1.97 "	0.39 in	0.98 in	50 mm	ITE (Commercial)	Isolated Module	5.1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 12.1V 1.3A 18V - 36V Input
