3537001N002

Active

APEM

SWITCH TOGGLE SPDT 15A 28V

Search across all available documentation for this part.

Active

APEM

SWITCH TOGGLE SPDT 15A 28V

Technical Specifications

Parameters and characteristics for this part

Specification	3537001N002

Actuator Length [x]	17.5 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPDT
Current Rating (Amps)	15 A
Electrical Life	10000 Cycles
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	Mom-Off-Mom
Termination Style	Screw Terminal
Voltage Rating - DC	28 V

Part	Circuit	Bushing Thread	Electrical Life	Illumination	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Ingress Protection	Switch Function	Current Rating (Amps)	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material	Actuator Length [x]	Actuator Type
APEM 3537001N002	SPDT	15/32-32	10000 Cycles	Non-Illuminated	12.2 mm	28 V	IP67 - Dust Tight Waterproof	Mom-Off-Mom	15 A	Screw Terminal	85 °C	-40 °C	Brass Nickel Plated	17.5 mm	Standard Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	150	$ 16.35

General part information

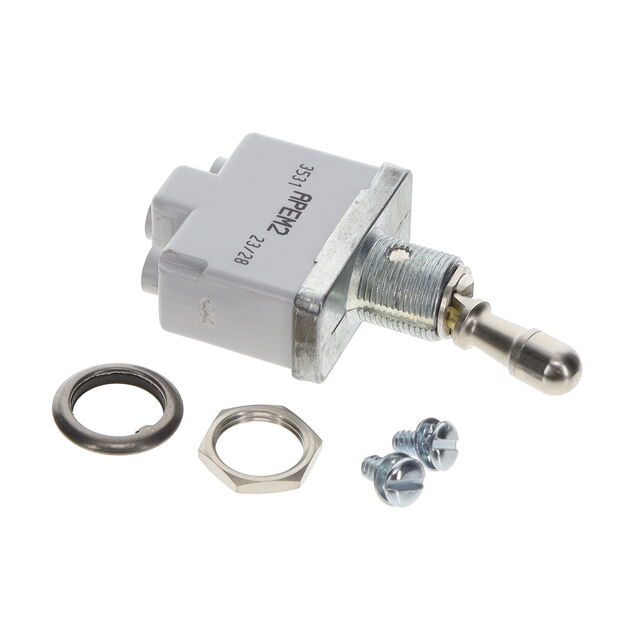

Toggle Switch SPDT Panel Mount
