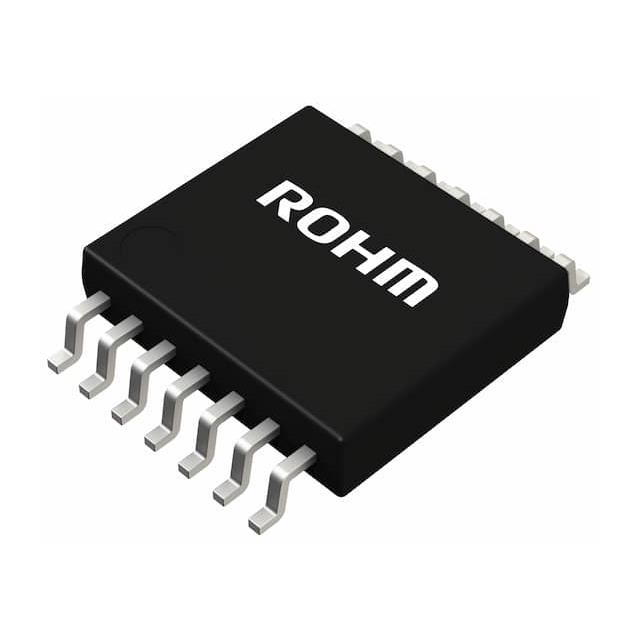

TLR2374FV-LBE2
ActiveTLR™ SERIES, LOW NOISE HIGH OUTPUT DRIVE RAIL-TO-RAIL INPUT/OUTPUT CMOS OPERATIONAL AMPLIFIER
Deep-Dive with AI
Search across all available documentation for this part.
TLR2374FV-LBE2
ActiveTLR™ SERIES, LOW NOISE HIGH OUTPUT DRIVE RAIL-TO-RAIL INPUT/OUTPUT CMOS OPERATIONAL AMPLIFIER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TLR2374FV-LBE2 |
|---|---|
| Amplifier Type | Standard |
| Current - Input Bias | 2.5 pA |
| Current - Output / Channel | 22 mA |
| Current - Supply | 1.125 mA |
| Gain Bandwidth Product | 5 MHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Push-Pull, Rail-to-Rail |
| Package / Case | 0.173 ", 4.4 mm |
| Package / Case | 14-LSSOP |
| Slew Rate | 3 V/µs |
| Supplier Device Package | 14-SSOPB |
| Voltage - Input Offset | 10 µV |
| Voltage - Supply Span (Max) [Max] | 16 V |
| Voltage - Supply Span (Min) [Min] | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.20 | |
| 10 | $ 1.97 | |||
| 25 | $ 1.86 | |||
| 100 | $ 1.59 | |||
| 250 | $ 1.49 | |||
| 500 | $ 1.30 | |||
| 1000 | $ 1.08 | |||
| Digi-Reel® | 1 | $ 2.20 | ||
| 10 | $ 1.97 | |||
| 25 | $ 1.86 | |||
| 100 | $ 1.59 | |||
| 250 | $ 1.49 | |||
| 500 | $ 1.30 | |||
| 1000 | $ 1.08 | |||
| Tape & Reel (TR) | 2500 | $ 1.00 | ||
| 5000 | $ 0.97 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 2.90 | |
| 10 | $ 1.76 | |||
| 25 | $ 1.64 | |||
| 50 | $ 1.53 | |||
| 100 | $ 1.41 | |||
| 250 | $ 1.24 | |||
| 500 | $ 1.13 | |||
| 1000 | $ 1.04 | |||
Description
General part information
TLR2374FV-LB Series
This product is a rank product for the industrial equipment market. This is the best product for use in these applications. This product is a Rail-to-Rail input/output monolithic IC integrated quad independent CMOS operational amplifier features wide operating voltage range with 4V to 16V, low input offset voltage, low noise, low input bias current and high output drive. It is suitable for equipment operating from battery power and using sensors that an amplifier.
