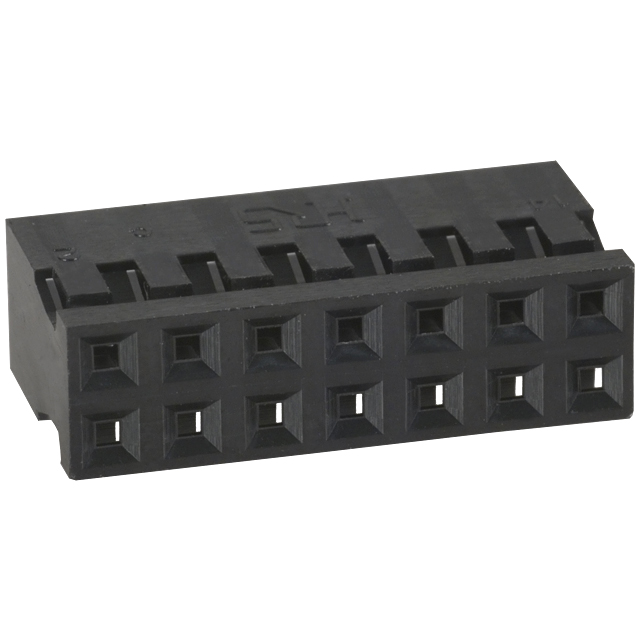

A3B-14D-2C

Active

Hirose Electric USA, Inc.

2.0MM PITCH DOUBLE ROW MINIATURE CONNECTORS

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

2.0MM PITCH DOUBLE ROW MINIATURE CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Specification	A3B-14D-2C

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	14
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in

Part	Connector Type	Number of Positions	Mounting Type	Contact Type	Row Spacing	Row Spacing	Number of Rows	Contact Termination	Color	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Note	Pitch [x]	Pitch [x]
Hirose Electric USA, Inc. A3B-14D-2C	Receptacle	14	Free Hanging (In-Line)	Female Socket	2 mm	0.079 in	2	Crimp	Black	85 °C	-55 °C	Polybutylene Terephthalate (PBT)	Contacts Not Included	0.079 in	2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)
