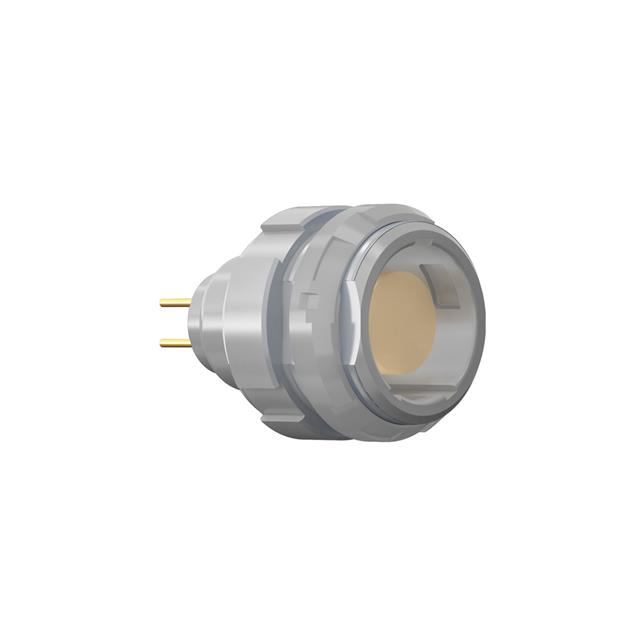

G52ME7-P16LFG0-0071

Active

ODU

ODU MEDI-SNAP RECEPT, STY 5, SZ

Search across all available documentation for this part.

Active

ODU

ODU MEDI-SNAP RECEPT, STY 5, SZ

Technical Specifications

Parameters and characteristics for this part

Specification	G52ME7-P16LFG0-0071

Applications	Testing Equipment, Medical, Industrial, Measurement
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	7.5 A
Fastening Type	Detent Lock, Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front or Rear Side Nut
Number of Positions	16
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-50 °C
Orientation	E
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	2
Shielding	Unshielded
Voltage Rating	25 V

Part	Current Rating (Amps)	Orientation	Applications	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Fastening Type	Contact Finish - Mating	Contact Material	Insert Material	Material Flammability Rating	Connector Type	Color	Shell Material	Mounting Feature	Shielding	Number of Positions	Voltage Rating	Shell Size - Insert
ODU G52ME7-P16LFG0-0071	7.5 A	E	Industrial Measurement Medical Testing Equipment	Plastic	-50 °C	120 °C	IP50	Detent Lock Push-Pull	Gold	Brass	Polyetheretherketone (PEEK)	UL94 V-0	Receptacle Female Sockets	Gray	Polysulfone (PSU)	Bulkhead - Front or Rear Side Nut	Unshielded	16	25 V	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 60.53

General part information

16 Position Circular Connector Receptacle, Female Sockets Solder Cup
