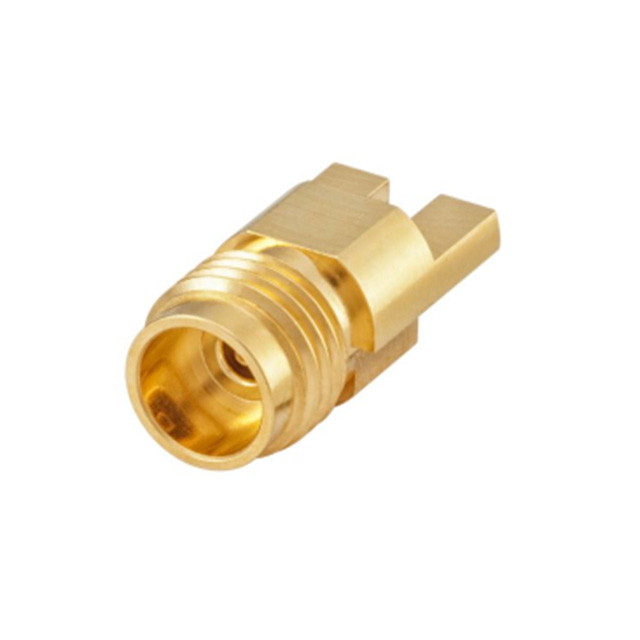

08K246-40ML3

Active

Rosenberger

CONN RPC1.85 JCK ST 50OHM EDGEMT

Search across all available documentation for this part.

Active

Rosenberger

CONN RPC1.85 JCK ST 50OHM EDGEMT

Technical Specifications

Parameters and characteristics for this part

Specification	08K246-40ML3

Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	1.85 mm
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	70 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Cutout, Board Edge, Surface Mount
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	150 VDC

Part	Mounting Type	Center Contact Plating	Connector Style	Center Contact Material	Dielectric Material	Mating Cycles	Contact Termination	Body Finish	Frequency - Max [Max]	Body Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Impedance	Shield Termination	Voltage Rating	Housing Color
Rosenberger 08K246-40ML3	Board Edge Cutout Surface Mount	Gold	1.85 mm	Beryllium Copper	Polyetheretherketone (PEEK) Polytetrafluoroethylene (PTFE)	500	Solder	Gold	70 GHz	Beryllium Copper	Female Socket Jack	-55 °C	125 °C	1	50 Ohms	Solder	150 VDC	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.85mm Connector Jack, Female Socket 50 Ohms Board Edge, Cutout; Surface Mount Solder
