EBM10MMWN

Active

Sullins Connector Solutions

3.96MM STRAIGHT 20P -65℃~+125℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

EBM10MMWN

Active

Sullins Connector Solutions

3.96MM STRAIGHT 20P -65℃~+125℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EBM10MMWN

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Fits Female Edgecards
Color	Blue
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Phosphor Bronze
Gender	Male
Material - Insulation	Polybutylene Terephthalate (PBT)
Mounting Type	Through Hole
Number of Positions	20
Number of Positions/Bay/Row [custom]	10
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder

EBM10 Series

...

Part	Material - Insulation	Contact Type	Number of Positions	Card Type	Number of Rows	Termination	Contact Finish Thickness	Contact Finish Thickness	Read Out	Pitch [x]	Pitch [x]	Flange Feature	Gender	Contact Finish	Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Card Thickness	Card Thickness	Number of Positions/Bay/Row [custom]	Mounting Type	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
Sullins Connector Solutions EBM10DREI	Polybutylene Terephthalate (PBT)	Full Bellows	20	Non Specified - Dual Edge	2	Solder Eyelet(s)	10 Áin	0.25 Ám	Dual	0.156 in	3.96 mm	4-40 Threaded Insert Top Mount Opening	Female	Gold	Blue	125 °C	-65 ░C	Phosphor Bronze	0.062 in	1.57 mm	10
Sullins Connector Solutions EBM10DRSN-S664	Polybutylene Terephthalate (PBT)	Loop Bellows	20	Non Specified - Dual Edge	2	Solder	10 Áin	0.25 Ám	Dual	0.156 in	3.96 mm		Female	Gold	Blue	125 °C	-65 ░C	Phosphor Bronze	0.125 in	3.18 mm	10	Through Hole
Sullins Connector Solutions EBM10DTMD	Polybutylene Terephthalate (PBT)	Loop Bellows	20	Non Specified - Dual Edge	2	Solder	10 Áin	0.25 Ám	Dual	0.156 in	3.96 mm	Flush Mount Top Opening Unthreaded	Female	Gold	Blue	125 °C	-65 ░C	Phosphor Bronze	0.062 in	1.57 mm	10	Through Hole Right Angle	0.125 "	3.18 mm
Sullins Connector Solutions EBM10DRMD	Polybutylene Terephthalate (PBT)	Loop Bellows	20	Non Specified - Dual Edge	2	Wire Wrap	10 Áin	0.25 Ám	Dual	0.156 in	3.96 mm	Flush Mount Top Opening Unthreaded	Female	Gold	Blue	125 °C	-65 ░C	Phosphor Bronze	0.062 in	1.57 mm	10	Through Hole	0.125 "	3.18 mm
Sullins Connector Solutions EBM10DTBN	Polybutylene Terephthalate (PBT)	Loop Bellows	20	Non Specified - Dual Edge	2	Solder	10 Áin	0.25 Ám	Dual	0.156 in	3.96 mm		Female	Gold	Blue	125 °C	-65 ░C	Phosphor Bronze	0.062 in	1.57 mm	10	Through Hole Right Angle
Sullins Connector Solutions EBM10DSEH	Polybutylene Terephthalate (PBT)	Full Bellows	20	Non Specified - Dual Edge	2	Solder Eyelet(s)	10 Áin	0.25 Ám	Dual	0.156 in	3.96 mm	Top Mount Opening Unthreaded	Female	Gold	Blue	125 °C	-65 ░C	Phosphor Bronze	0.062 in	1.57 mm	10				0.125 in	3.18 mm
Sullins Connector Solutions EBM10MMWN	Polybutylene Terephthalate (PBT)		20	Fits Female Edgecards	2	Solder	10 Áin	0.25 Ám	Dual	0.156 in	3.96 mm		Male	Gold	Blue	125 °C	-65 ░C	Phosphor Bronze	0.062 in	1.57 mm	10	Through Hole
Sullins Connector Solutions EBM10DTAH-S189	Polybutylene Terephthalate (PBT)	Loop Bellows	20	Non Specified - Dual Edge	2	Solder	10 Áin	0.25 Ám	Dual	0.156 in	3.96 mm	Top Mount Opening Unthreaded	Female	Gold	Blue	125 °C	-65 ░C	Phosphor Bronze	0.062 in	1.57 mm	10	Through Hole Right Angle			0.125 in	3.18 mm
Sullins Connector Solutions EBM10DCAD	Polybutylene Terephthalate (PBT)	Hairpin Bellows	20	Non Specified - Dual Edge	2	Solder	10 Áin	0.25 Ám	Dual	0.156 in	3.96 mm	Flush Mount Top Opening Unthreaded	Female	Gold	Blue	125 °C	-65 ░C	Phosphor Bronze	0.062 in	1.57 mm	10	Through Hole Right Angle	0.125 "	3.18 mm
Sullins Connector Solutions EBM10DCTN	Polybutylene Terephthalate (PBT)	Hairpin Bellows	20	Non Specified - Dual Edge	2	Solder	10 Áin	0.25 Ám	Dual	0.156 in	3.96 mm		Female	Gold	Blue	125 °C	-65 ░C	Phosphor Bronze	0.062 in	1.57 mm	10	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	10	$ 3.55
LCSC	Piece	1	$ 3.85
		200	$ 1.49
		500	$ 1.44
		1000	$ 1.41

Description

General part information

EBM10 Series

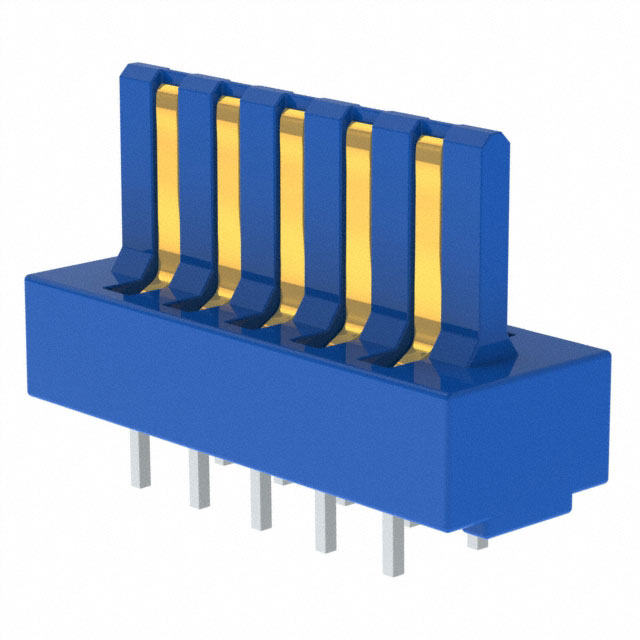

20 Position Male Connector Fits Female Edgecards Gold 0.156" (3.96mm) Blue
