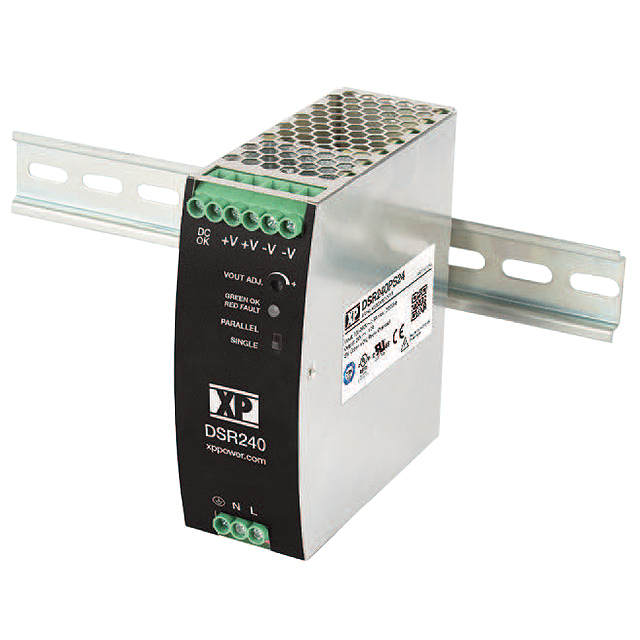

DSR240PS48
ObsoleteXP POWER
AC/DC DIN RAIL SUPPLY 48V 240W
Deep-Dive with AI
Search across all available documentation for this part.
DSR240PS48
ObsoleteXP POWER
AC/DC DIN RAIL SUPPLY 48V 240W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DSR240PS48 |
|---|---|
| AC Voltage - Input [Max] | 264 VAC |
| AC Voltage - Input [Min] | 85 VAC |
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 5 A |
| Efficiency | 94 % |
| Features | Universal Input |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 240 W |
| Size / Dimension [x] | 4.88 " |
| Size / Dimension [x] | 124 mm |
| Size / Dimension [y] | 45 mm |
| Size / Dimension [y] | 1.77 " |
| Size / Dimension [z] | 119.1 mm |
| Size / Dimension [z] | 4.69 in |
| Standard Number | 62368-1 |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 124.00 | |
| 5 | $ 120.28 | |||
| 10 | $ 116.56 | |||
| 25 | $ 111.60 | |||
| 100 | $ 104.16 | |||
Description
General part information
DSR240 Series
AC/DC DIN RAIL SUPPLY 48V 240W
Documents
Technical documentation and resources
