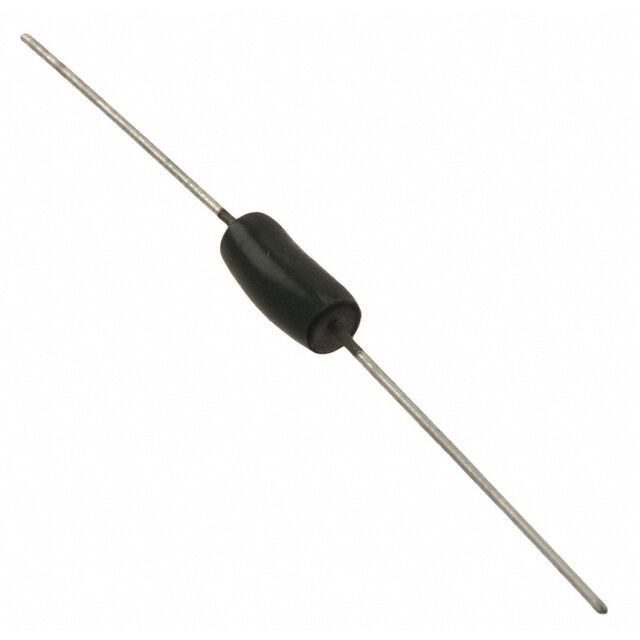

W21-R20JI
UnknownTT Electronics/Welwyn
RES 0.2 OHM 3W 5% AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W21-R20JI
UnknownTT Electronics/Welwyn
RES 0.2 OHM 3W 5% AXIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | W21-R20JI |
|---|---|
| Composition | Wirewound |
| Features | Flame Proof, Safety |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 3 W |
| Resistance | 200 mOhms |
| Size / Dimension [diameter] | 5.6 mm |
| Size / Dimension [diameter] | 0.22 " |
| Size / Dimension [z] | 12.7 mm |
| Size / Dimension [z] | 0.5 in |
| Supplier Device Package | Axial |
| Temperature Coefficient | 75 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 0.86 | |
| 2000 | $ 0.81 | |||
Description
General part information
W21 Series
200 mOhms ±5% 3W Through Hole Resistor Axial Flame Proof, Safety Wirewound
