GW VJLPE1.EM-KZLS-A838-1-350-R18
Obsoleteams-OSRAM USA INC.
LED OSLON WARM WHT 2700K 0404
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GW VJLPE1.EM-KZLS-A838-1-350-R18 |
|---|---|
| CCT (K) | 2700 K |
| Color | White, Warm |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 700 mA |
| Current - Test | 350 mA |
| Flux @ 85°C, Current - Test | 93 lm |
| Flux @ 85°C, Current - Test [Max] | 105 lm |
| Flux @ 85°C, Current - Test [Min] | 80 lm |
| Height - Seated (Max) [Max] [z] | 0.22 mm |
| Height - Seated (Max) [Max] [z] | 0.009 in |
| Lumens/Watt @ Current - Test | 95 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 0404 |
| Size / Dimension [x] | 0.042 in |
| Size / Dimension [x] | 1.08 mm |
| Size / Dimension [y] | 1.08 mm |
| Size / Dimension [y] | 0.042 in |
| Supplier Device Package | 0404 |
| Thermal Resistance of Package | 7.2 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
GWVJLPE1 Series

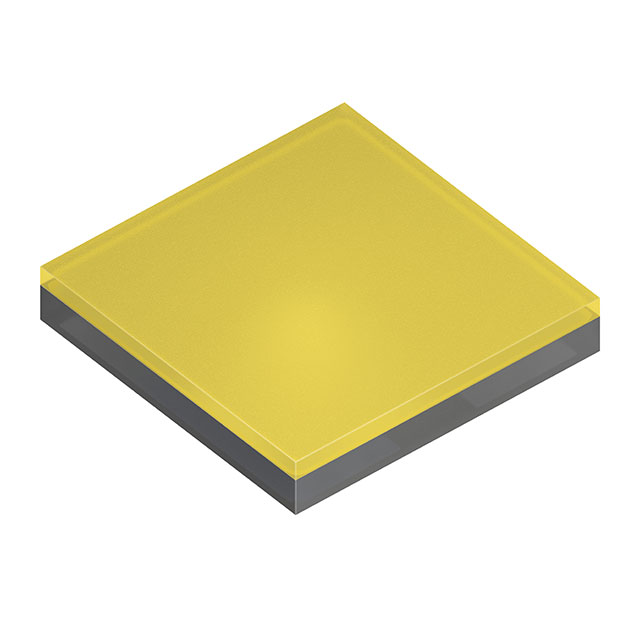

LED Lighting OSLON® Pure 1010 White, Warm 2700K 2.8V 350mA 120° 0404 (1010 Metric)
