EB_FR05-S1-NO-1-003

Obsolete

Ignion

EB_DUAL BAND - 003

Search across all available documentation for this part.

Obsolete

Ignion

EB_DUAL BAND - 003

Technical Specifications

Parameters and characteristics for this part

Specification	EB_FR05-S1-NO-1-003

For Use With/Related Products	FR05-S1-NO-1-003
Frequency [Max]	2.5 GHz, 5.875 GHz
Frequency [Min]	4.9 GHz, 2.4 GHz
Supplied Contents	Board(s)
Type	Antenna

Part	Type	Supplied Contents	For Use With/Related Products	Frequency [Max]	Frequency [Min]
Ignion EB_FR05-S1-P-0-107	Antenna	Board(s)	FR05-S1-P-0-107	5 GHz	3.1 GHz
Ignion EB_FR05-S1-NO-1-003	Antenna	Board(s)	FR05-S1-NO-1-003	2.5 GHz 5.875 GHz	2.4 GHz 4.9 GHz
Ignion EB_FR05-S1-N-0-102	Antenna	Board(s)	FR05-S1-N-0-102	2.5 GHz	2.4 GHz
Ignion EB_FR05-S1-N-0-110	Antenna	Board(s)	FR05-S1-N-0-110	2.5 GHz	2.4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

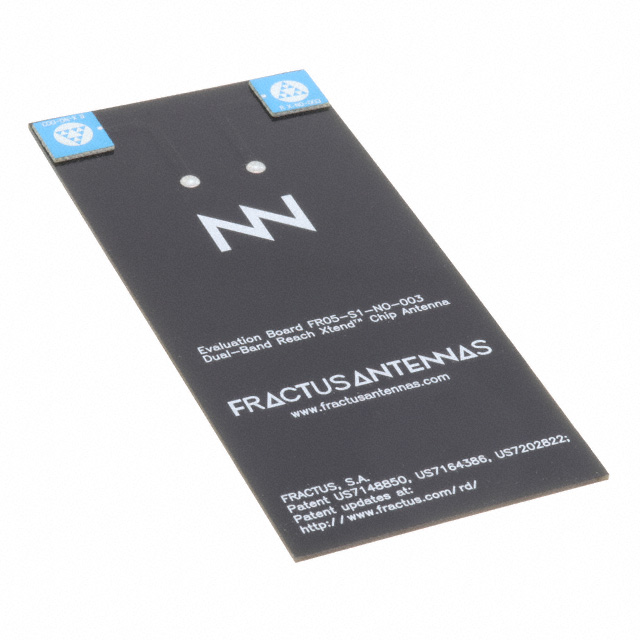

Dual-band Reach Xtend™ FR05-S1-NO-1-003 Antenna 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.875GHz Evaluation Board

Technical documentation and resources

No documents available
