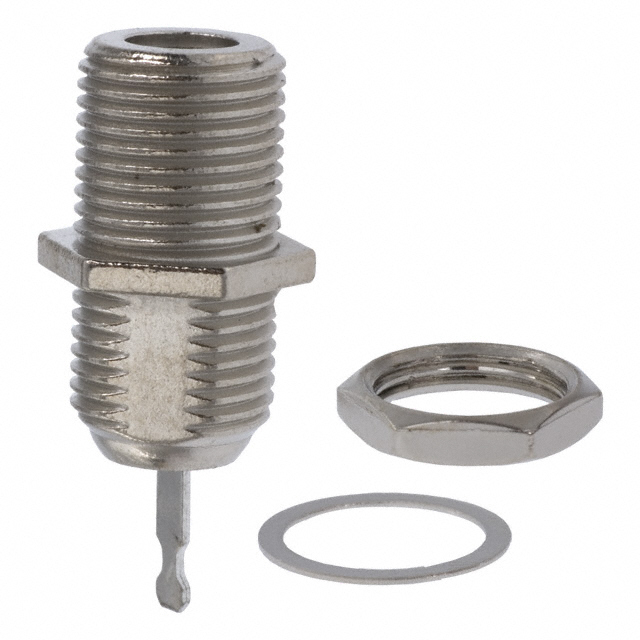

BA-1010

Obsolete

CUI Devices

CONN F JACK STR 75 OHM SOLDER

Search across all available documentation for this part.

Obsolete

CUI Devices

CONN F JACK STR 75 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	BA-1010

Connector Style	F Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Impedance	75 Ohms
Mounting Feature	Bulkhead - Front or Rear Side Nut
Number of Ports	1
Shield Termination	Solder

Part	Impedance	Connector Type	Shield Termination	Number of Ports	Cable Group	Connector Style	Mounting Type	Convert From (Adapter End)	Convert To (Adapter End)	Center Gender	Conversion Type	Mounting Feature	Adapter Type	Style	Adapter Series	Contact Termination
CUI Devices BA-0060	75 Ohms	Male Pin Plug	Crimp	1	RG-6	F Type	Free Hanging (In-Line)
CUI Devices BA-0160	75 Ohms	Male Pin Plug	Crimp	1	RG-6	F Type	Free Hanging (In-Line)
CUI Devices BA-2110								F Jack Female Socket	F Jack Female Socket	Female to Female	Same Series	Bulkhead	Jack to Jack	Straight	F to F
CUI Devices BA-1010	75 Ohms	Female Socket Jack	Solder	1		F Type						Bulkhead - Front or Rear Side Nut				Solder
CUI Devices BA-0410	75 Ohms	Male Pin Plug	Twist On	1	RG-59	F Type	Free Hanging (In-Line)									Push On
CUI Devices BA-4030							Free Hanging (In-Line)	F Plug Male Pin	BNC Jack Female Socket		Between Series		Plug to Jack	Straight	BNC to F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

F Type Connector Jack, Female Socket 75 Ohms Panel Mount Solder
