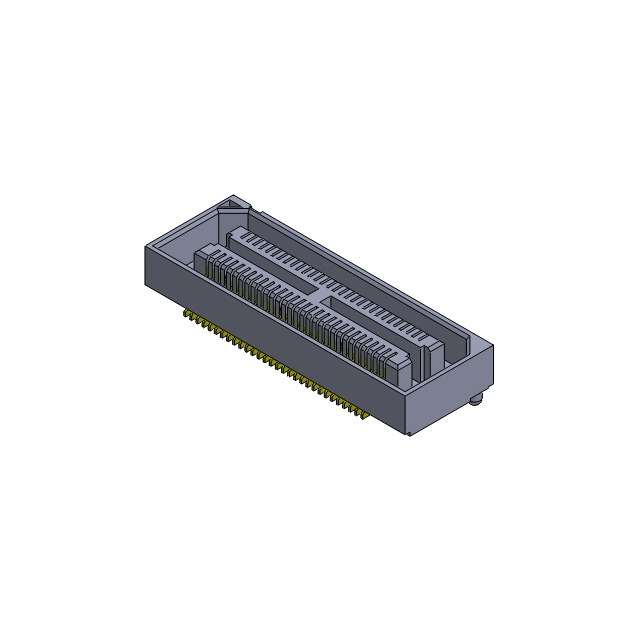

2336-60FC3DP1T-S
ActiveOupiin
HIGH SPEED BOARD TO BOARD, FEMAL
Deep-Dive with AI
Search across all available documentation for this part.
2336-60FC3DP1T-S
ActiveOupiin
HIGH SPEED BOARD TO BOARD, FEMAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2336-60FC3DP1T-S |
|---|---|
| Connector Type | Receptacle, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 2.54 µm |
| Contact Finish Thickness | 100 µin |
| Features | Board Guide |
| Height Above Board | 3.05 mm |
| Height Above Board | 0.12 in |
| Mounting Type | Surface Mount |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 7.50 | |
| 200 | $ 6.25 | |||
| 400 | $ 5.00 | |||
| 600 | $ 4.25 | |||
| 800 | $ 3.75 | |||
Description
General part information
2336 Series
60 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
Documents
Technical documentation and resources
No documents available
