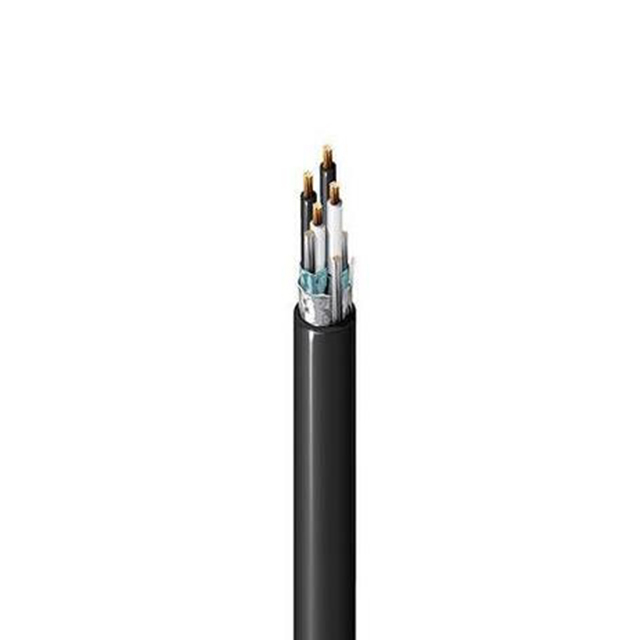

1044A 0102500

Active

Belden Inc.

MULTI-PAIR 40COND 16AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 40COND 16AWG

Technical Specifications

Parameters and characteristics for this part

Specification	1044A 0102500

Cable Type	Multi-Pair
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	7
Conductor Strand [custom]	24
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	28.47 mm
Jacket (Insulation) Diameter [diameter]	1.121 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.084 in
Jacket (Insulation) Thickness	2.134 mm
Jacket Color	Black
Length	2500 ft
Length	762 m
Number of Conductors	40
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	16 AWG

Part	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Shield Coverage	Cable Type	Number of Conductors	Jacket Color	Features	Shield Type	Shield Material	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Length	Length
Belden Inc. 1044A 0105000	16 AWG	28.47 mm	1.121 in	Poly-Vinyl Chloride (PVC)	100 %	Multi-Pair	40	Black	Drain Wire Rip Cord	Foil	Aluminum	7	24	Copper Bare	0.084 in	2.134 mm	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)
Belden Inc. 1044A 0102500	16 AWG	28.47 mm	1.121 in	Poly-Vinyl Chloride (PVC)	100 %	Multi-Pair	40	Black	Drain Wire Rip Cord	Foil	Aluminum	7	24	Copper Bare	0.084 in	2.134 mm	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	2500 ft	762 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	2500	$ 21.49

General part information

40 (20 Pair Twisted) Conductor Multi-Pair Cable Black 16 AWG Foil 2500' (762.0m)
