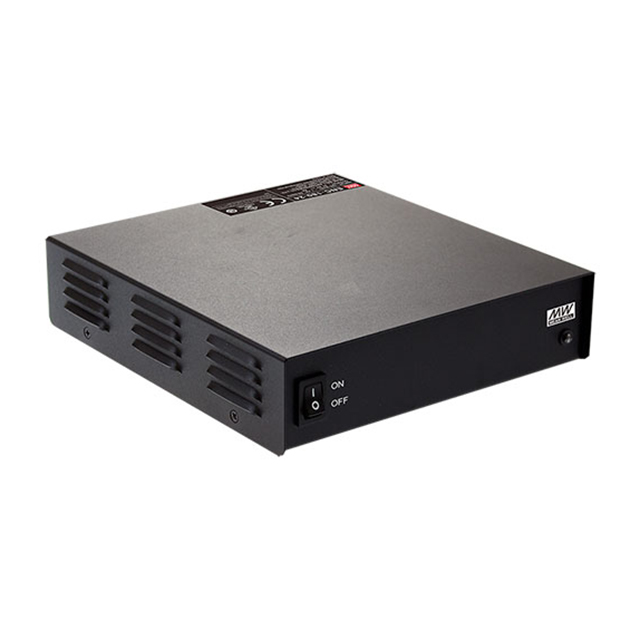

ENP-360-48

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 55.2V 359W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 55.2V 359W

Technical Specifications

Parameters and characteristics for this part

Specification	ENP-360-48

Applications	ITE (Commercial)
Approval Agency	CE, CB, cULus
Efficiency	94 %
Features	PFC, Adjustable Output, Universal Input
Minimum Load Required	False
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	359 W
Size / Dimension [x]	192 mm
Size / Dimension [x]	7.56 "
Size / Dimension [y]	178 mm
Size / Dimension [y]	7.01 "
Size / Dimension [z]	1.79 "
Size / Dimension [z]	45.5 mm
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	55.2 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Power (Watts)	Number of Outputs	Features	Voltage - Isolation	Minimum Load Required	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Voltage - Output 1	Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Applications
MEAN WELL USA Inc. ENP-360-48	70 °C	-30 °C	94 %	359 W	1	Adjustable Output PFC Universal Input	3000 V		90 VAC 127 VDC	264 VAC 370 VDC	CB CE cULus	55.2 V	Enclosed	1.79 "	45.5 mm	178 mm	7.01 "	192 mm	7.56 "	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 55.2V 90 ~ 264 VAC, 127 ~ 370 VDC Input
