MB5RJN0801-KIT

Active

Amphenol Sine Systems Corp

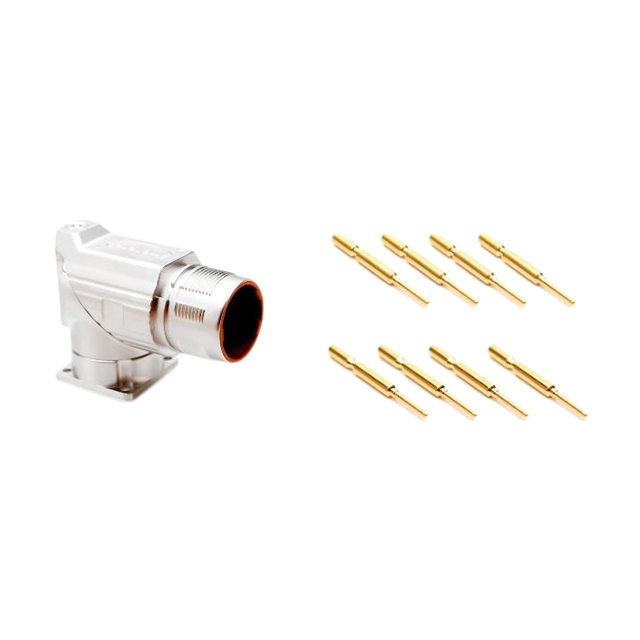

CONN RCPT MALE 8POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet MotionGrade DIN M23/M40 +1

MB5RJN0801-KIT

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 8POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet MotionGrade DIN M23/M40 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MB5RJN0801-KIT

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Current Rating (Amps)	10 A, 30 A
Features	Backshell, Rotatable
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Flange
Mounting Type	Right Angle, Panel Mount
Number of Positions	8
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-8
Termination	Crimp
Voltage Rating	250 VAC

MB5RJN Series

Part	Mounting Feature	Mounting Type	Connector Type	Shell Size - Insert	Features	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Type	Insert Material	Contact Type	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Contact Shape	Housing Color	Orientation	Contact Size	Note	Shell Material	Ingress Protection	Fastening Type	Material Flammability Rating	Number of Positions [custom]	Number of Positions	Current Rating (Amps)	Primary Material	Contact Finish - Mating	Termination	Voltage Rating	Color	Number of Positions
Amphenol Sine Systems Corp MB5RJN0902	Flange	Panel Mount Right Angle	Receptacle Housing	M23-9	Backshell Rotatable	4	9	4	1	For Male Pins	Polyamide (PA66) Nylon 6/6	Crimp	Nickel	-20 C	130 °C	Shielded	Circular	Silver	Keyed	1 mm 2 mm	Contacts Not Included	Zinc Die Cast	IP67 - Dust Tight Waterproof	Push-Twist	UL94 V-0
Amphenol Sine Systems Corp MB5RJN15H01	Flange	Panel Mount Right Angle	Receptacle Housing	M23-12	Backshell	6		4	1	For Male Pins	Polyamide (PA66) Nylon 6/6	Crimp	Nickel	-20 C	130 °C	Shielded	Circular	Silver	Keyed	0.6 mm 1 mm 2 mm	Contacts Not Included	Zinc Die Cast	IP67 - Dust Tight Waterproof	Push-Twist	UL94 V-0	1
Amphenol Sine Systems Corp MB5RJN0801-KIT	Flange	Panel Mount Right Angle	Male Pins Receptacle	M23-8	Backshell Rotatable								Nickel	-20 C	130 °C				N			Zinc Die Cast	IP67 - Dust Tight Waterproof				8	10 A 30 A	Metal	Gold	Crimp	250 VAC	Silver
Amphenol Sine Systems Corp MB5RJN0601-KIT	Flange	Panel Mount Right Angle	Male Pins Receptacle	M23-6	Backshell Rotatable								Nickel	-20 C	130 °C				N			Zinc Die Cast	IP67 - Dust Tight Waterproof				6	28 A	Metal	Gold	Crimp	630 VAC/DC	Silver
Amphenol Sine Systems Corp MB5RJN0801	Flange	Panel Mount Right Angle	Receptacle Housing	M23-8	Backshell Rotatable	4	8	3		For Male Pins	Polyamide (PA66) Nylon 6/6	Crimp	Nickel	-20 C	130 °C	Shielded	Circular	Silver	Keyed	1 mm 2 mm	Contacts Not Included	Zinc Die Cast	IP67 - Dust Tight Waterproof	Push-Twist	UL94 V-0									PE
Amphenol Sine Systems Corp MB5RJN0802	Flange	Panel Mount Right Angle	Receptacle Housing	M23-8	Backshell Rotatable	4	8	3		For Male Pins	Polyamide (PA66) Nylon 6/6	Crimp	Nickel	-20 C	130 °C	Shielded	Circular	Silver	Keyed	1 mm 2 mm	Contacts Not Included	Zinc Die Cast	IP67 - Dust Tight Waterproof	Push-Twist	UL94 V-0									PE
Amphenol Sine Systems Corp MB5RJN0602-KIT	Flange	Panel Mount Right Angle	Male Pins Receptacle	M23-6	Backshell Rotatable								Nickel	-20 C	130 °C				N			Zinc Die Cast	IP67 - Dust Tight Waterproof				6	28 A	Metal	Gold	Crimp	630 VAC/DC	Silver
