APM-UL-20A

Active

OptiFuse

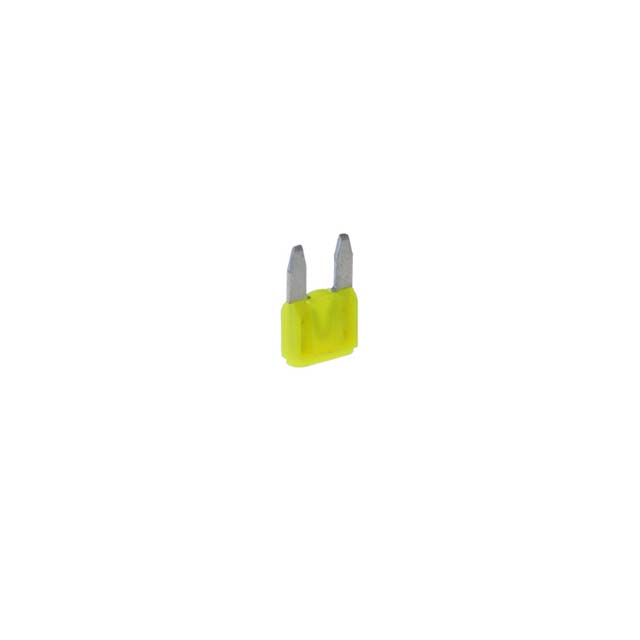

FUSE AUTO 20A 32VDC BLADE MINI

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 20A 32VDC BLADE MINI

Technical Specifications

Parameters and characteristics for this part

Specification	APM-UL-20A

Approval Agency	UL, SAE, ISO
Breaking Capacity @ Rated Voltage	1 kA
Color	Yellow
Current Rating (Amps)	20 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	Blade, Miniature
Response Time	Fast Blow
Size / Dimension [x]	0.429 "
Size / Dimension [x]	10.9 mm
Size / Dimension [y]	3.8 mm
Size / Dimension [y]	0.15 "
Size / Dimension [z]	8.8 mm
Size / Dimension [z]	0.346 inches
Voltage Rating - DC	32 V

Part	Breaking Capacity @ Rated Voltage	Mounting Type	Color	Package / Case	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Fuse Type	Response Time	Voltage Rating - DC
OptiFuse APM-UL-4A	1 kA	Requires Holder	Pink	Blade Miniature	4 A	3.8 mm	0.429 "	8.8 mm	0.15 "	0.346 inches	10.9 mm	ISO SAE UL	Automotive	Fast Blow	32 V
OptiFuse APM-UL-25A	1 kA	Requires Holder	Clear	Blade Miniature	25 A	3.8 mm	0.429 "	8.8 mm	0.15 "	0.346 inches	10.9 mm	ISO SAE UL	Automotive	Fast Blow	32 V
OptiFuse APM-UL-5A	1 kA	Requires Holder	Tan	Blade Miniature	5 A	3.8 mm	0.429 "	8.8 mm	0.15 "	0.346 inches	10.9 mm	ISO SAE UL	Automotive	Fast Blow	32 V
OptiFuse APM-UL-20A	1 kA	Requires Holder	Yellow	Blade Miniature	20 A	3.8 mm	0.429 "	8.8 mm	0.15 "	0.346 inches	10.9 mm	ISO SAE UL	Automotive	Fast Blow	32 V
OptiFuse APM-UL-15A	1 kA	Requires Holder	Blue	Blade Miniature	15 A	3.8 mm	0.429 "	8.8 mm	0.15 "	0.346 inches	10.9 mm	ISO SAE UL	Automotive	Fast Blow	32 V
OptiFuse APM-UL-3A	1 kA	Requires Holder	Violet	Blade Miniature	3 A	3.8 mm	0.429 "	8.8 mm	0.15 "	0.346 inches	10.9 mm	ISO SAE UL	Automotive	Fast Blow	32 V
OptiFuse APM-UL-2A	1 kA	Requires Holder	Gray	Blade Miniature	2 A	3.8 mm	0.429 "	8.8 mm	0.15 "	0.346 inches	10.9 mm	ISO8820-3 SAE-J2077 UL275A	Automotive		32 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.34

General part information

20 A AC 32 V DC Fuse Automotive Requires Holder Blade, Miniature
