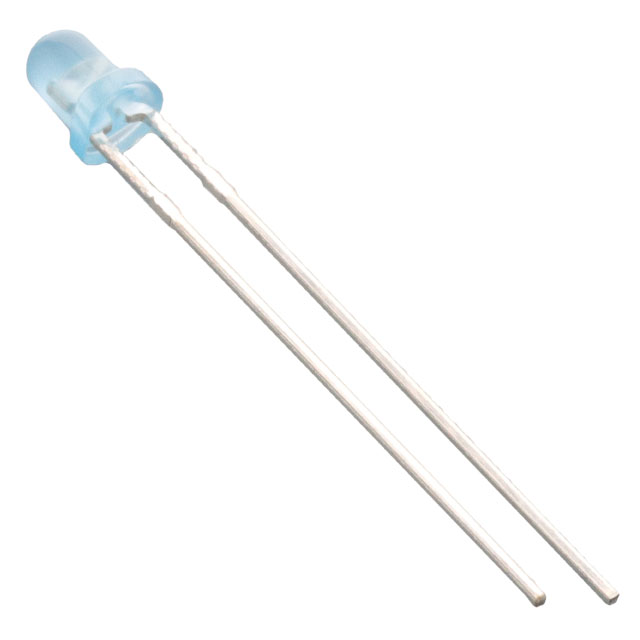

QBL7IB60D
ActiveQT Brightek (QTB)
LED BLUE DIFFUSED T-1 T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QBL7IB60D
ActiveQT Brightek (QTB)
LED BLUE DIFFUSED T-1 T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QBL7IB60D |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 5.33 mm |
| Lens Color | Blue |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 1300 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension [diameter] | 3 mm |
| Supplier Device Package | T-1 (3mm) |
| Viewing Angle | 60 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
| Wavelength - Dominant | 470 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.59 | |
| 10 | $ 0.41 | |||
| 100 | $ 0.30 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.23 | |||
| 2000 | $ 0.21 | |||
| 5000 | $ 0.20 | |||
| 10000 | $ 0.19 | |||
| 25000 | $ 0.18 | |||
Description
General part information
QBL7IB60 Series
Blue 470nm LED Indication - Discrete 3.2V Radial
