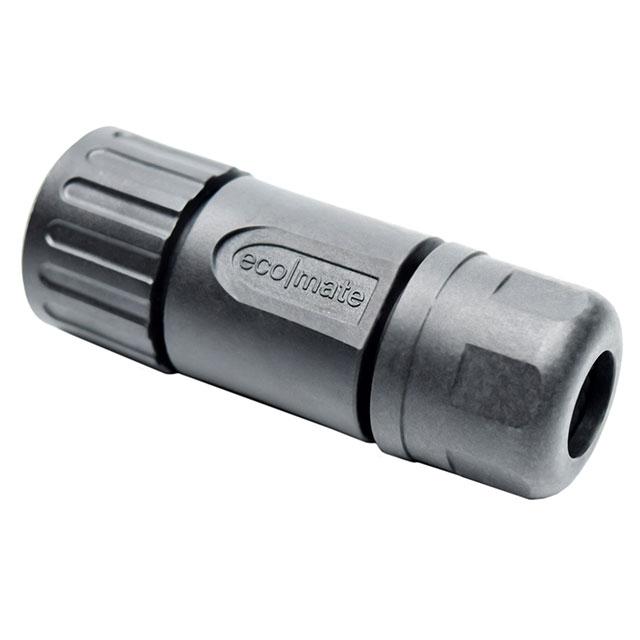

RTS6BS12N10P03

Active

Amphenol Sine Systems Corp

CONN PLUG HSG MALE 10POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEco|mate® Aquarius™ Flyer Datasheet +1

RTS6BS12N10P03

Active

Amphenol Sine Systems Corp

CONN PLUG HSG MALE 10POS INLINE

Deep-Dive with AI

DocumentsEco|mate® Aquarius™ Flyer Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RTS6BS12N10P03

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Housing Color	Black
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	10
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shielding	Unshielded
Type	For Male Pins

RTS6BS12 Series

Part	Orientation	Connector Type	Mounting Type	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Contact Size	Shell Size - Insert	Contact Type	Ingress Protection	Note	Material Flammability Rating	Type	Fastening Type	Includes	Shielding	Features	Housing Color	Number of Positions
Amphenol Sine Systems Corp RTS6BS12N3PHEC03	N	Plug Housing	Free Hanging (In-Line)	Circular	125 °C	-40 °C	Thermoplastic	16	12-3	Crimp	IP67 IP69K	Contacts Not Included	UL94 V-0	For Male Pins	Bayonet Lock	1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer	Unshielded	Backshell Coupling Nut	Black
Amphenol Sine Systems Corp RTS6BS12N2P03	N	Plug Housing	Free Hanging (In-Line)	Circular	125 °C	-40 °C	Thermoplastic	2.5 mm 20	12-2	Crimp	IP67 IP69K	Contacts Not Included	UL94 V-0	For Male Pins	Bayonet Lock		Unshielded	Backshell Coupling Nut	Black	4
Amphenol Sine Systems Corp RTS6BS12N10P03	N	Plug Housing	Free Hanging (In-Line)	Circular	125 °C	-40 °C	Thermoplastic	20		Crimp	IP67 IP69K	Contacts Not Included	UL94 V-0	For Male Pins	Bayonet Lock		Unshielded	Backshell Coupling Nut	Black	10
Amphenol Sine Systems Corp RTS6BS12N4P03	N	Plug Housing	Free Hanging (In-Line)	Circular	125 °C	-40 °C	Thermoplastic	16	12-4	Crimp	IP67 IP69K	Contacts Not Included	UL94 V-0	For Male Pins	Bayonet Lock		Unshielded	Backshell Coupling Nut	Black	4
Amphenol Sine Systems Corp RTS6BS12N10PHEC03	N	Plug Housing	Free Hanging (In-Line)	Circular	125 °C	-40 °C	Thermoplastic	20		Crimp	IP67 IP69K	Contacts Not Included	UL94 V-0	For Male Pins	Bayonet Lock	1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer	Unshielded	Backshell Coupling Nut	Black	10
Amphenol Sine Systems Corp RTS6BS12N3P03	N	Plug Housing	Free Hanging (In-Line)	Circular	125 °C	-40 °C	Thermoplastic	16	12-3	Crimp	IP67 IP69K	Contacts Not Included	UL94 V-0	For Male Pins	Bayonet Lock		Unshielded	Backshell Coupling Nut	Black
Amphenol Sine Systems Corp RTS6BS12N8PHEC03	N	Plug Housing	Free Hanging (In-Line)	Circular	125 °C	-40 °C	Thermoplastic	16	12-8	Crimp	IP67 IP69K	Contacts Not Included	UL94 V-0	For Male Pins	Bayonet Lock	1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer	Unshielded	Backshell Coupling Nut	Black	8
Amphenol Sine Systems Corp RTS6BS12N8S03	N	Plug Housing	Free Hanging (In-Line)	Circular	125 °C	-40 °C	Thermoplastic	16	12-8	Crimp	IP67 IP69K	Contacts Not Included	UL94 V-0	For Female Sockets	Bayonet Lock		Unshielded	Backshell Coupling Nut	Black	8
Amphenol Sine Systems Corp RTS6BS12N10SHEC03	N	Plug Housing	Free Hanging (In-Line)	Circular	125 °C	-40 °C	Thermoplastic	20		Crimp	IP67 IP69K	Contacts Not Included	UL94 V-0	For Female Sockets	Bayonet Lock	1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer	Unshielded	Backshell Coupling Nut	Black	10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.98
		10	$ 9.73
		25	$ 9.36
		50	$ 8.98
		200	$ 8.79

Description

General part information

RTS6BS12 Series

10 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut

Documents

Technical documentation and resources

Eco|mate® Aquarius™ Flyer

Datasheet

ecomate-Family-Flyer-2019

Datasheet
