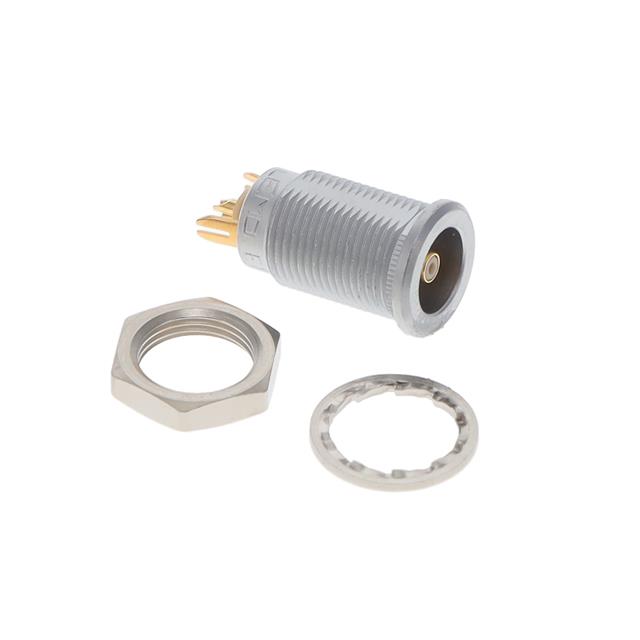

CIRCULAR PUSH PULL CONNECTORS FIXED RCPT COAXIAL 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Coaxial, Triaxial, Multi Catalog +1

ERN.00.650.CLL

Active

LEMO

CIRCULAR PUSH PULL CONNECTORS FIXED RCPT COAXIAL 50 OHM

Deep-Dive with AI

DocumentsDatasheet Coaxial, Triaxial, Multi Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERN.00.650.CLL

Body Finish	Chrome
Body Material	Brass
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	NIM-CAMAC CD/N 549, Triaxial
Connector Type	Receptacle, Female Socket
Contact Termination	Solder Cup
Dielectric Material	Polyetheretherketone (PEEK)
Fastening Type	Push-Pull
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	5000
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	260 ░C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	700 VDC
