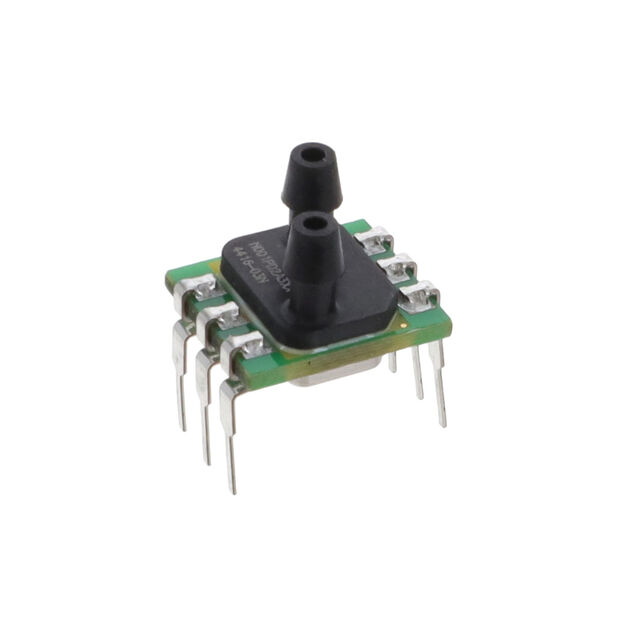

ABP2DDAN001PD2A3XX

Active

Honeywell Sensing and Productivity Solutions

SENSOR 1PSIG 0.11" 14BIT 6DIP

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 1PSIG 0.11" 14BIT 6DIP

Technical Specifications

Parameters and characteristics for this part

Specification	ABP2DDAN001PD2A3XX

Accuracy	0.25 %
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	250 PSI
Maximum Pressure [Max]	1723.69 kPa
Mounting Type	Through Hole
Operating Pressure	6.89 kPa
Operating Pressure	1 PSI
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Output	14 b
Output Type	I2C
Package / Case	6-DIP Module, Dual Ports, Same Side
Port Size	0.11 ", 2.74 mm
Port Style	Barbed
Pressure Type	Vented Gauge
Supplier Device Package	6-DIP
Termination Style	PC Pin
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.8 V

Part	Output	Mounting Type	Package / Case	Operating Pressure	Operating Pressure	Voltage - Supply [Max]	Voltage - Supply [Min]	Accuracy	Port Size	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Port Style	Output Type	Termination Style	Pressure Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Features
Honeywell Sensing and Productivity Solutions ABP2DDAN001PD2A3XX	14 b	Through Hole	6-DIP Module Dual Ports Same Side	6.89 kPa	1 PSI	3.6 V	1.8 V	0.25 %	0.11 " 2.74 mm	6-DIP	-40 °C	110 °C	Barbed	I2C	PC Pin	Vented Gauge	250 PSI	1723.69 kPa	Amplified Output Temperature Compensated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 1PSI (6.89kPa) Vented Gauge Male - 0.11" (2.74mm) Tube 14 b 6-DIP Module, Dual Ports, Same Side
